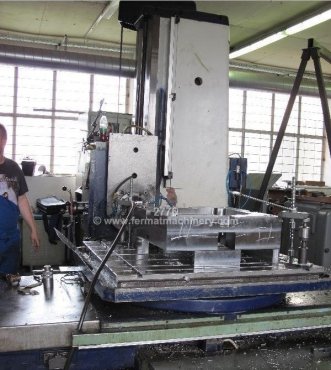

Only one engine for three axis, as by system TNC 135. overhaul 2007 - system TNC 320. could by test it under power.
Specifications:
Diameter of working spindle 100 mm
Travel X-axis 1250 mm
Longitudinal adjustment of table (Z) 940 mm
Cross adjustment of table (X) 1250 mm
Motion of work head on frame (Y) 900 (1120) mm
Slip out of working spindle (W) 630 mm
Spindle nose ISO 50 -
Main motor output 20 kW
Spindle speed range 10 - 1120 (1800) min
Clamping area of table 1000 x 1120 mm
Max. weight of workpiece 3000 kg
Total input 50 kVA
Dimensions l x w x h 4746x3000x3340 mm
Machine weight 13400 kg
