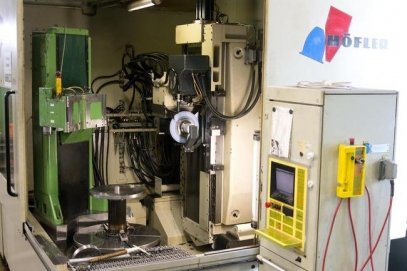

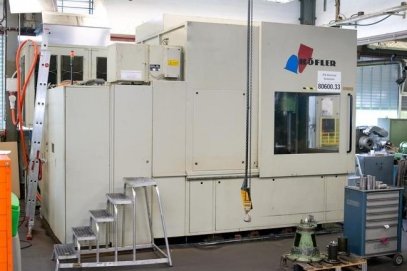

CNC gear grinding machine Hoefler Nova 1000 gear diameter max. Min 1000 mm root diameter. Min 30 mm module max /.. 25/1, 5 wheel width = 0: 550 mm Number of Teeth: 40 min grinding wheel diameter /: freely selectable helix L + R max max: 270/350 mm wheel width: 35 mm stroke max: 550 mm ram strokes stuffenlos: 20 - 200 1/min rolling speed: 0 - 1000 mm / min Grinding wheel drive: 20 kW pressure angle-grinding wheel: 12/25 pressure angle-grind: 12 / 30 max profile correction. 0.5 mm lead correction max. 0.5 mm table load. 1500 kg Table diameter: 720 mm Table bore diameter: 150 mm Tischbohrungstife: 160 mm
