Full container Romanian Gear Hobbers


Offer full container

1) GEAR GRINDING MACHINE TYPE REISHAUER OZA
Charachteristics:
Producer: Reishauer, Switzerland
Year manufacture: 1973
Manufacturing number: 32600-35
Max. diameter 300 mm
Min. diameter 10 mm
Max. length 130 mm
Min. length 12 mm
Module 0,55
Weight 4400 kg
Lenght 2000 mm
Width 1600 mm
Height 2100 mm
Price 12.000 EUR FCA

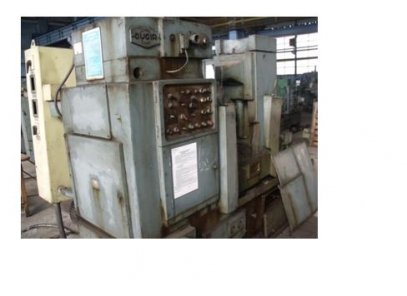

2)Gear hobbing machine type FD-400

Tehnical data
-max. hobbing diameter………………………..400 mm
-max. module of teeth………………………….8 mm
-axial travel of milling head……………………300 mm
-max. size of hob……………………………….160 x 180 mm
-main working feed range………………………0.71-6.3 mm/rev
-main spindle speed range……………………...50-300 rpm
-main motor power……………………………..7,5 kw
-overall dimensions:
-length…………………………………..2675 mm
-width…………………………………...1645 mm
-height…………………………………...2040 mm
-weight…………………………………………..6400 kg
Price : 5,500 Euro / Buc FCA





3) Gear hobbing machine type FD-400





Price : 5,500 Euro / Buc FCA


4) Gear Shaping Machine type 5140 Russian

Max module of gears processed……………………………. .8 mm
Max diameter of gears processed………………………….…500 mm
Limits the number of double races per minute ……….….65-450 mm
Electric motor power…………………………………………..3,7 kw
Dimensions(Length xWidth xHeight)……….…1750x1250x2350 mm
Weight…………………………………………..……………4200 kg


Price: 5.000 EUR FCA Romania











5) Italian Slotting Machine

Table’s surface : 250 x 200 mm
Ram’s travel : 200 mm
Weight : 800 kg

The machine’s table doesn’t rotate.

PRICE: 2.500 EUR




Pret full container - 28.000 Eur FCA
- 31.000 CIF India

-
