Description:

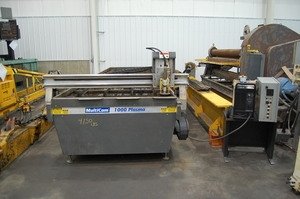

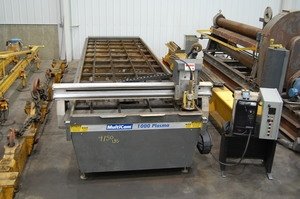

MULTI CAM CNC PLASMA CUTTING MACHINE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $29,500.00
Stock # 11069-P
Serial # 1-208-P05899 New July 2007 Model # 208-P
Cutting Capacity: 60" x 241" x 1/4" Mild Steel

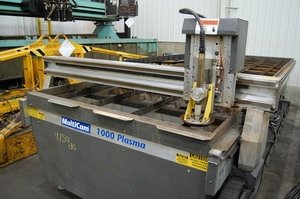

(1) Standard Plasma Cutting Head with Torch

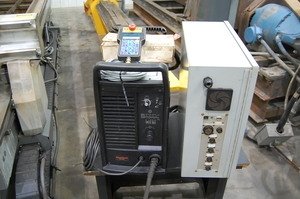

Plasma Power Source: Hypertherm Powermax,
Model # 1000-G3, Serial # 1000-056216
60 Amp, 200-600 Volts Auto Voltage
Standard Air Plasma System (Not Hi-Def)
Multi Cam HM120 CNC Control
Machine Voltage: 3 Phase 50/60Hz, 208 Volts, 4 Amps
Floor to Table Work Height: 38" +/-

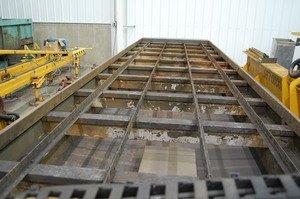

Dry Down Draft Work Table with Dust Collector Piping to End of Table (NO Dust Collector Unit)
Overall Size of Machine: 81" Wide x 268" Long x 60" High x 4,400 Lbs.
Overall Size of Plasma and Control Box: 20"x 24" x 21" High for Both Units
Factory Catalog Information:
http://www.multicam.com/eng/Products/1000plasma.html
The low-cost MultiCam 1000 Series Plasma is equipped with standard features normally only found on more
expensive CNC plasma cutting machines. The 1000 Series Plasma features dual drives, an engineered aluminum extrusion frame, 25mm bearings throughout, and state-of-the-art Hypertherm plasma units, as well as the legendary ease-of-use of the MultiCam Controller. For companies looking for value in a plasma cutter, the 1000 Series is the perfect solution.
1000 Series Plasma Standard Features:
Custom Engineered Aluminum Extrusion Design for High Strength and Rigidity
High-Speed Contouring
User-Friendly MultiCam Controller
Material Database, Down Draft Style Table
Self Adjusting Pressure Foot, Roller Hold Down Torch Holder
Precision Dual X-Axis Drives (One on Each Side of Bridge)
8 Megabytes of Memory with Unlimited File Size Transfer Capabilities
Standard Ethernet or RS232 Direct Connections
Continued on Page 2
MULTI CAM CNC PLASMA CUTTING MACHINE
Stock # 11069-P
Serial # 1-208-P05899 New July 2007 Model # 208-P
Factory Catalog Information (Continued):

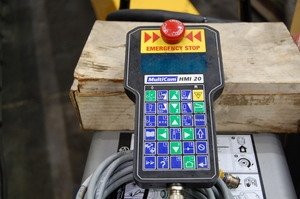

MultiCam EZ Control
Handheld Keypad Interface Allows Operator to Set Job Parameters, Jog the Machine, Perform System Tests
and Download Jobs from a Remote Computer System
Standard Shape Library with Automatic Array
Ethernet and Serial Communications Interface are Available to the Host Computer System
Productivity Software Suite is Included
Bar-Code Scanning Interface and 2D Part Digitizing are Available Options
Integrated Material Database
When you change material type, material thickness, or arc current many parameters such as feed rate, pierce delay, pierce height, etc. all need to be adjusted. MultiCam has made this process simple by integrating all of these cutting values into a simple to use menu driven database on its hand held controller. The user simply selects material type, thickness, and arc current and all of the settings are adjusted automatically.
Specifications:
MULTI CAM CNC PLASMA CUTTING MACHINE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $29,500.00
Stock # 11069-P
Serial # 1-208-P05899 New July 2007 Model # 208-P
Cutting Capacity: 60" x 241" x 1/4" Mild Steel
(1) Standard Plasma Cutting Head with Torch
Plasma Power Source: Hypertherm Powermax,
Model # 1000-G3, Serial # 1000-056216
60 Amp, 200-600 Volts Auto Voltage
Standard Air Plasma System (Not Hi-Def)
Multi Cam HM120 CNC Control
Machine Voltage: 3 Phase 50/60Hz, 208 Volts, 4 Amps
Floor to Table Work Height: 38" +/-
Dry Down Draft Work Table with Dust Collector Piping to End of Table (NO Dust Collector Unit)
Overall Size of Machine: 81" Wide x 268" Long x 60" High x 4,400 Lbs.
Overall Size of Plasma and Control Box: 20"x 24" x 21" High for Both Units
Factory Catalog Information:
http://www.multicam.com/eng/Products/1000plasma.html
The low-cost MultiCam 1000 Series Plasma is equipped with standard features normally only found on more
expensive CNC plasma cutting machines. The 1000 Series Plasma features dual drives, an engineered aluminum extrusion frame, 25mm bearings throughout, and state-of-the-art Hypertherm plasma units, as well as the legendary ease-of-use of the MultiCam Controller. For companies looking for value in a plasma cutter, the 1000 Series is the perfect solution.
1000 Series Plasma Standard Features:
Custom Engineered Aluminum Extrusion Design for High Strength and Rigidity
High-Speed Contouring
User-Friendly MultiCam Controller
Material Database, Down Draft Style Table
Self Adjusting Pressure Foot, Roller Hold Down Torch Holder
Precision Dual X-Axis Drives (One on Each Side of Bridge)
8 Megabytes of Memory with Unlimited File Size Transfer Capabilities
Standard Ethernet or RS232 Direct Connections
Continued on Page 2
MULTI CAM CNC PLASMA CUTTING MACHINE
Stock # 11069-P
Serial # 1-208-P05899 New July 2007 Model # 208-P
Factory Catalog Information (Continued):
MultiCam EZ Control
Handheld Keypad Interface Allows Operator to Set Job Parameters, Jog the Machine, Perform System Tests
and Download Jobs from a Remote Computer System
Standard Shape Library with Automatic Array
Ethernet and Serial Communications Interface are Available to the Host Computer System
Productivity Software Suite is Included
Bar-Code Scanning Interface and 2D Part Digitizing are Available Options
Integrated Material Database
When you change material type, material thickness, or arc current many parameters such as feed rate, pierce delay, pierce height, etc. all need to be adjusted. MultiCam has made this process simple by integrating all of these cutting values into a simple to use menu driven database on its hand held controller. The user simply selects material type, thickness, and arc current and all of the settings are adjusted automatically.
