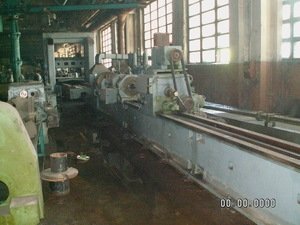

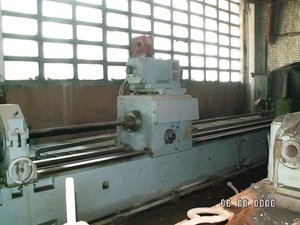

DeepHole drilling machine GILDEMEISTER B4P2-3000
Machine is designed for deep drilling of various types of work. Equipped with Digital Readollt, central lubrication system.
Normal depth of drilling – 3000 mm
Range of drilling diameters (steel):
Solid drill – dia 120mm
Circular drill – 300mm
One cutter boring – 400 mm
Many cutters boring – 300 mm
Centers height – 375 mm
Max. external diameter of work – 815 mm
Motor capacity – 152 kW
Spindle rpm – 1200
Spindle rpm range – 56-1120
Spindle nose – dia 113mm
Feed force max. - 60 kH
Fast feed – 7000 mm\\min
Dimensions – 18,6 x 3,0 x 2,2 m
Weight – 15 t
