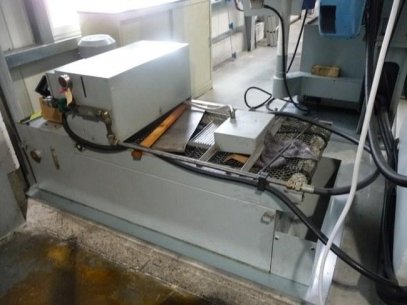

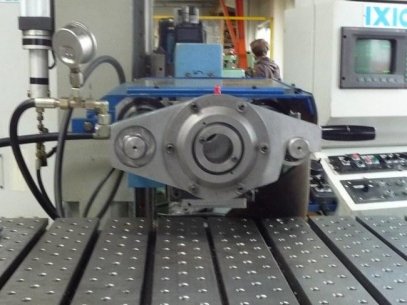

Coordinates CNC deep hole drilling machine for drilling of cubic workpieces 100% Ready Specifications: Travels X axis (Horizontal) 1000 mm Y axis (vertical) 800 mm Z axis (drilling axis) 1000 mm W-axis (table along) 700 mm drilling tool taper SK 40 DIN 69 871 0 speed 4000 rev / min drive power 3.0 kW 100% ED / 5.5 kW 50% workpiece clamping plate, clamping table 1675 x 700 mm table load. 2000 kg Table rotation + / - 180 speed X-axis (machine stand) 6000 mm / min Y-axis (vertical slide) 6000 mm / min Z-axis (sliding drill) 6000 mm / min to perform work in steel 60 Drilling diameter with ELHB 4 25 mm Twist Drill up tool diameter 25 mm Tapping M20 high-pressure coolant system tank size 500 l Pump power 50 min at 25 l /. CNC control Bosch CC 100 X, X, Z-axis controlled Other Operating voltage 380 V / 50 HZ Steürspannung 24V DC-Power consumption 20 kW Machine weight 4,5 to machine features: - High-Pressure Coolant system with paper filter - Coolant Reservoir with shavings catcher - mud pump for external coolant supply - Removable drilling arm, on linear roller guide, einschl.Späneschleuse for the return of oil and chips - Incl. wide range of accessories Pact (n boring tools to customer specifications) - Incl. Sump
