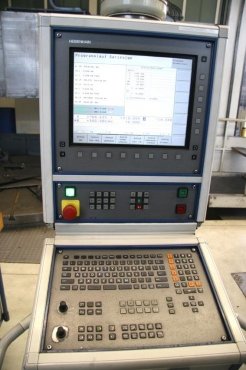

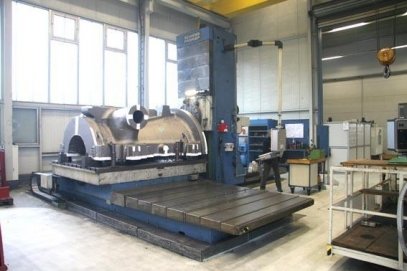

CNC Horizontal Borer Schiess Froriep type BF 160 T 40, with Heidenhain 530 I, modernized 2007

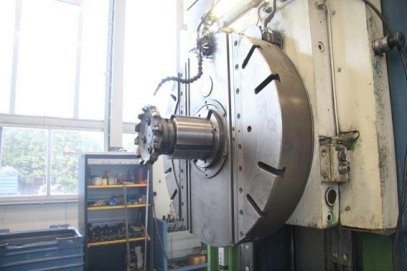

Spindle diam 160 mm/ISO 50/30kW
Milling spindle taper ISO 60
Spindle speeds 2,8-1,120 rpm
X 3950 mm
Y 2500 mm
W 2500 mm
Z 1000 mm
U 240 mm
Table size 2250 x 2750 mm
Feeds X/Y 0,1-5500 mm / min
Feeds Z/W/B 0,1-2800 mm / min
