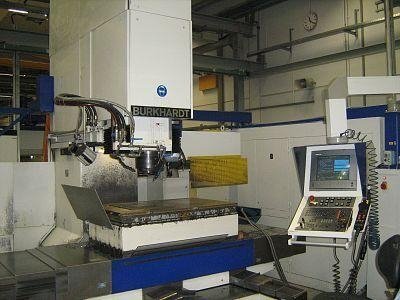

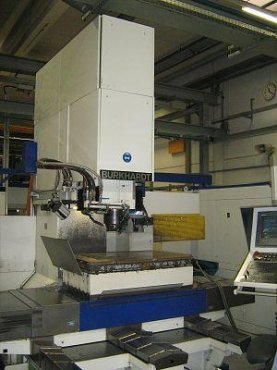

BURKHARDT & WEBER, HYOP 120 NCW
new 1979, retrofitted in 2000

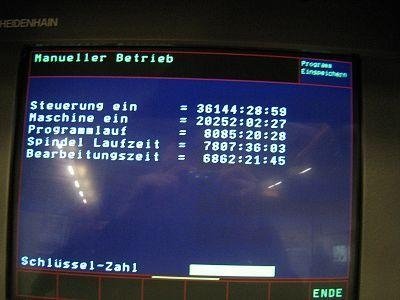

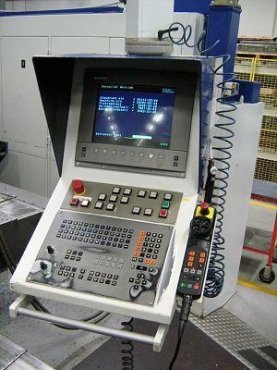

Heidenhain TNC 426 PB
Workrange: 1250 x 630 x 560 mm
main motor: 44 kW

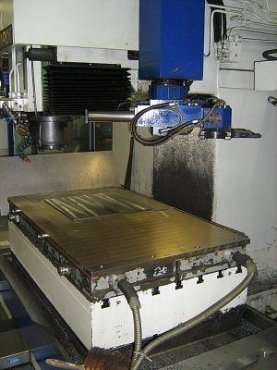

Equipment: Fixed Table 1200 x 710, Add. Table 200 mm,
36-station Tool Changer, Cooling.

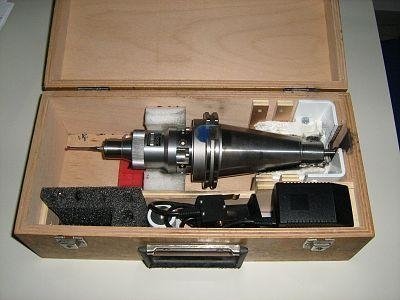

HEIDENHAIN Probe
- without the Magnetic Table -
Spindle ISO 50, Speedrange 30-3000 min-1
max. Torque 522 Nm
Feed Rate 3-2000 mm, Rapid Feed 10 m/min
Distance Spindle - Table Surface 725 mm
Distance Spindle - Column 800 mm.
Measurements ca. 5 x 5 m, Weight ca. 12 to
Die Maschine was retrofitted in 2000 with Siemens AC-Drives and Heidenhain Control
