dimensions of working area 400 x 250 mm

drill capacity in steel 20 mm

maximum bore diameter 75 mm

table dimensions 550 x 320 mm

allowed weight of table 200 kg

longitudinal travelling distance - X - 400mm

lateral travelling distance - Y - 250mm

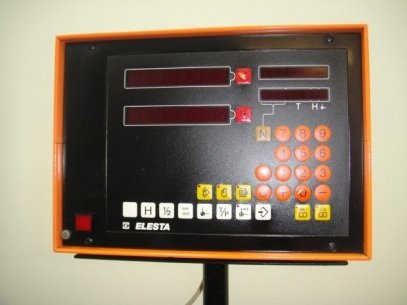

digital display for X - Y

usable projection 320mm

distance between spindle and table 590 mm

stroke of spindle sleeve 130mm

spindle speeds from 60 to 1,500 r.p.min.

space required width - 1,400 x depth - 1,400 x height -
1,900mm

electrical data 380V / 1.7KW

weight approx. 1,250 kg

documentation available

-
