Stock-No. 1133-B183
Type of machine Ram-Type Floor Boring and Milling M/C
Make SKODA
Type WD 160A
Year of manufacture 1969

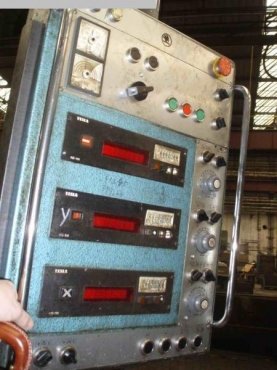

Type of control conventional
Storage location Deutschland
Country of origin Czech Republic
Delivery time immediately
Freight basis Free loaded on Truck/Flat
Price on request
Technical details
spindle diameter 160 mm
x-travel 6000 mm
y-travel 2500 mm
z-travel 1250 mm
w-travel 1600 mm
dimension of the ram 450x450 mm
spindle motor 35 kW
spindle taper metric MT 100
weight of the machine ca. 80 t
Additional information
Underpower; Excellent condition
- With Floor plate one piece: 1800x5000 mm

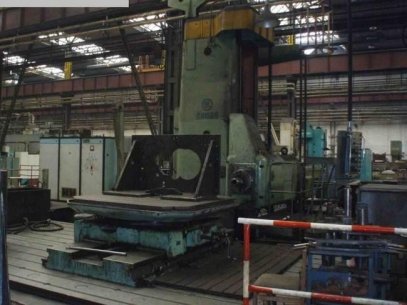

- With rotary table Skoda Type: E20, Clamping table area 2000x2000 mm, Table load max workpiece 200 000 N (20 t), The movement of the slide bed 1200 mm
