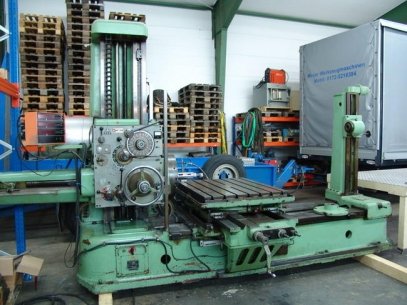

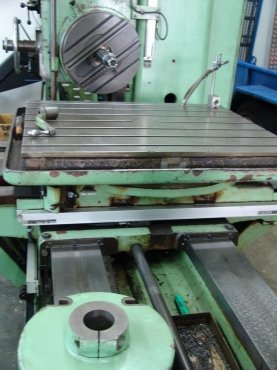

Diameter of drilling spindle 80mm Spindle taper MT5 Largest diameter during boring spindle with 450mm Largest diameter when machining with 700mm blade slide largest drilling depth in one stroke (spindle supplies) 710/355-1 065MM Major - Minimum height of the spindle center to table 0 - 900mm Biggest removal Setzstock bearing 480mm from the face plate 2 240mm diameter face plate centering the faceplate 250 B6 mm depth of the centering of the face plate 6mm Table clamping surface 900 x 1120mm centering of the table 140 B6 mm depth of the centering of the table 6mm Automatic Qürbewegung the table 1000mm Automatic longitudinal movement of the table in Qürstellung 1000mm Automatic longitudinal movement of Tiscshes positioned lengthwise 1000mm Number of speeds 24 Range of speeds: Low Series I: for plan Schöbe and spindle 6 levels from 5.6 to 30.5 U / min Middle row II / for faceplate 6Stufen 26.5 150U minute for spindle 6Stufen 22.4 - 125U/Min. Increased number III for rapid speed of the spindle 6Stufen 180 - 1000rpm. Feeds: 32 feeds from 0.02 to 12 mm / rev for the drill spindle, Senkrechtvorschübe the headstock Longitudinal cross feeds of the table of the table of the blade slide Kreisvorschübe Vorschüübe the table 18 of the drill spindle at 0.035-20mm non-rotating spindle / U. 18 feeds of 12.5-600mm / min. Senkrechtsvorschübe the headstock Längsvorschü [...Technical data truncated]
