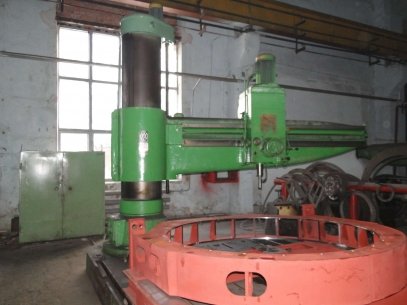

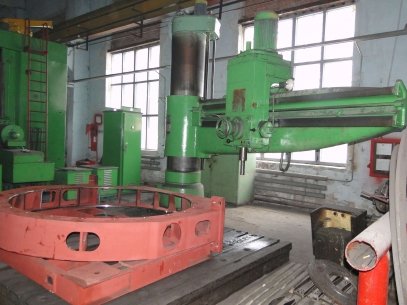

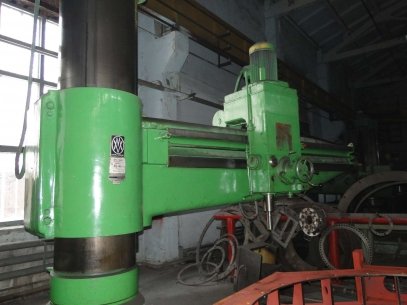

The drill is complete in all aspects. Good and working condition.
Specifications:
Year of manufacture 1986
Drilled capacity of steel/cast iron, mm 100/120
Drilled diameter with pre drill of steel/cast iron, mm 170/200
Thread cutting of steel/cast iron, mm 100/125
Drilling radius, mm 3000
Work piece height, mm 440...2100
Min. spindle distance from column, mm 540
Spindle turning speed range, rpm 18...1800
Spindle taper MT 6
Quill stroke, mm 400
Column diameter, mm 600
Foundation size for work piece clamping, mm 3160 x 1550
Main drive power, kW 13
Machine dimensions, mm 4390 x 1550 x 4130
Machine weight, kg 13200
