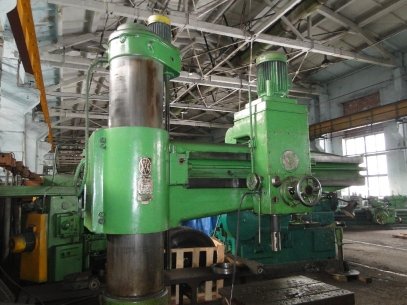

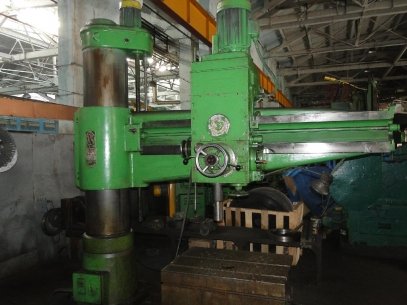

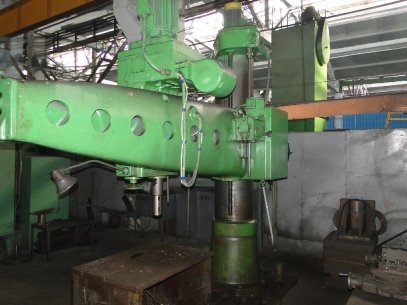

Radial drilling machine is in good and working condition. It is complete in all aspects.
Specifications:
Manufactured by Csepel (Hungary)
Year of manufacture 1983
Drilled capacity of steel/cast iron, mm 75/90
Drilled capacity with pre drill steel/cast iron, mm 125/140
Thread cutting of steel/cast iron, mm 60/70
Drilling radius, mm 2000
Work piece height, mm 1700
Spindle turning speed range, rpm 19...1900
Spindle taper MT 5
Min. spindle distance from column, mm 440
Quill stroke, mm 380
Machine dimensions, mm 3220 x 1130 x 3400
Machine weight, kg 7700
