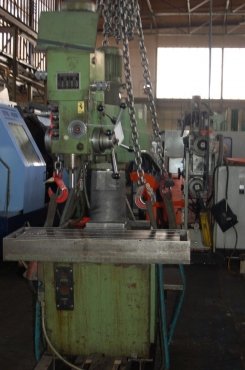

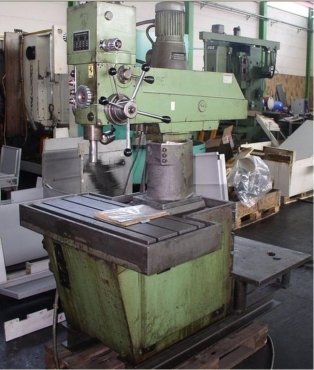

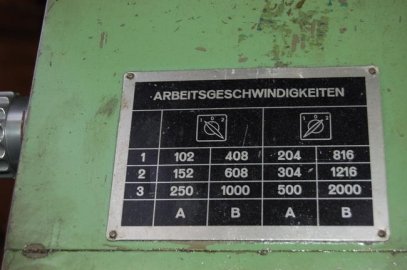

Drilling capacity in steel: 32 mm taper in the spindle: MT3 Spindle - stroke: 350 mm, 12 spindle speeds U / 150 mm adjustability of the column. 100 - 2000 3 bumper. Feeds mm / U: 0.1 - 0.2 - 0.3 level of freedom table / spindle max. 620 mm height of freedom table / min spindle. 270 mm radius max. / Min. 790/330 Size of working table: 1050/510 mm 3 T-slots in the working table: 18 mm column diameter: 160 mm extra-column: 50 mm lift motor: 1 hp Lifting speed: min 1.5 mm / min. 2 - stage main engine: 1.8 / 2.2 HP motor quick blocking: 1 PS weight 1500 kg
