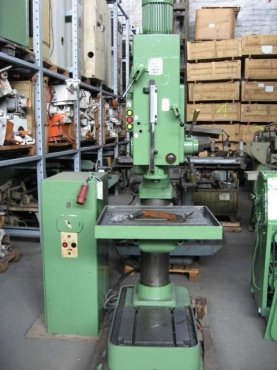

Drill Stand / Drilling machine with associated electrical box

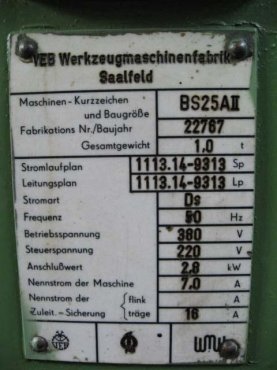

Manufacturing No. / Year: 227-87
Total weight: 1,000 kg
Circuit diagram: Sp 1113.14-9313
Management plan: 1113.14-9313 Lp
Current: Ds (AC)
Frequency: 50 Hz
Operating voltage: 380 V
Control voltage: 220 V
Power: 2.8 kW
Nominal current of the machine: 7.0 A
Lead fuse (slow): 16 A
Dimensions machine:
Depth: 960 mm
Width: 710 mm
Height: 2,330 mm
Current cabinet dimensions:
Depth: 600 mm
Width: 430 mm
Height: 1,200 mm

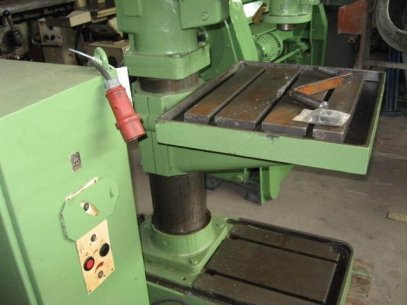

Worktop / Table tiltable and vertically adjustable
Drill chuck: 31 mm
