Gear cutter master machine is designed for fine cutting worm wheels of high precision; manufacturing precision machined components; dividing wheels, ring gear, worm gear big size of gear milling machines; dividing wheels for faceplate for vertical turret lathe including C axis, positioning of the faceplate; dividing wheels of rotary tables including for table of jig boring machine; worm wheels of other dividing machines; wheels of astronomical instruments and parts.
Specifications:

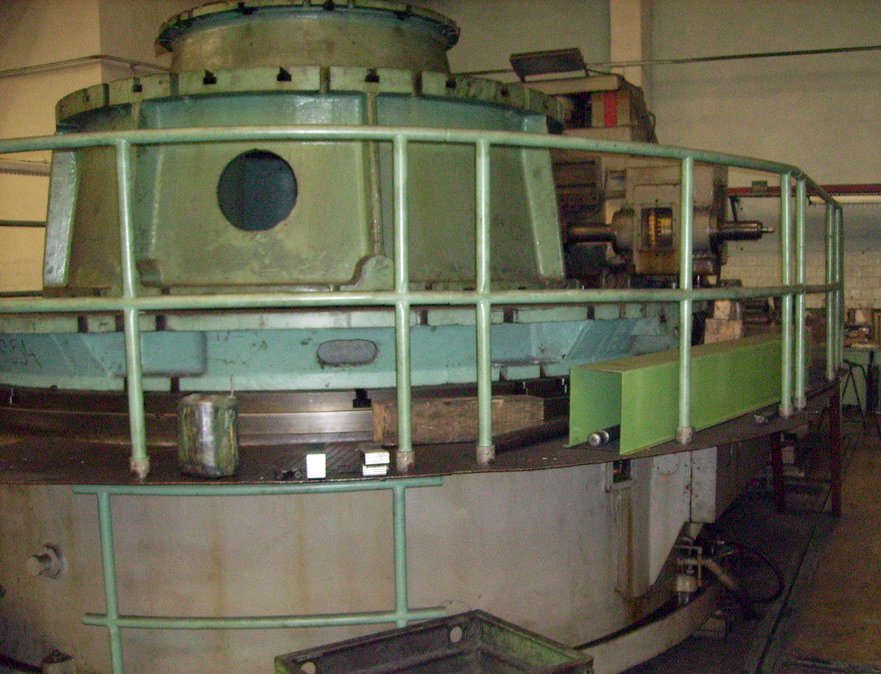

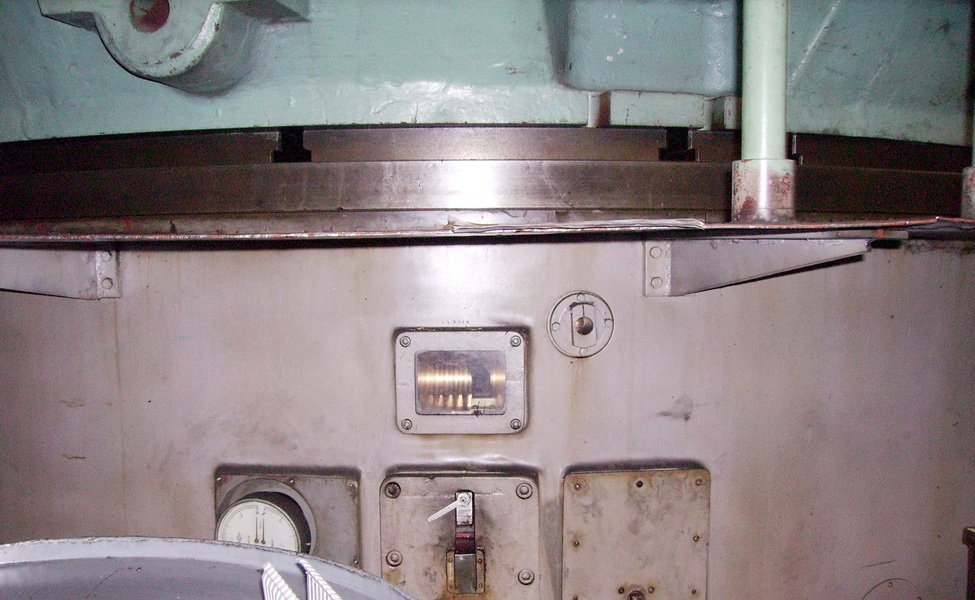

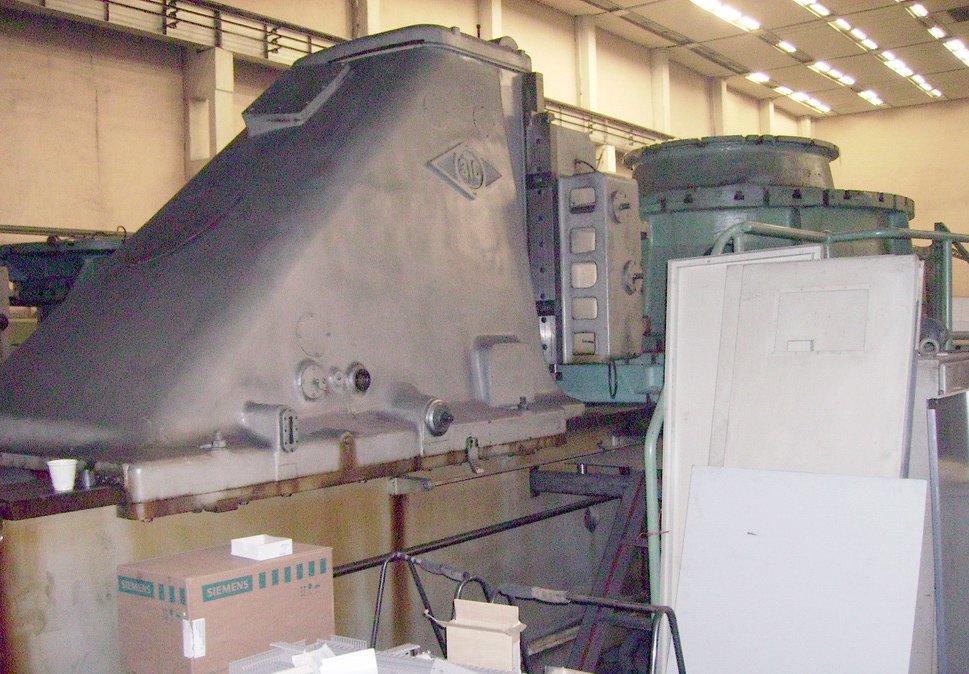

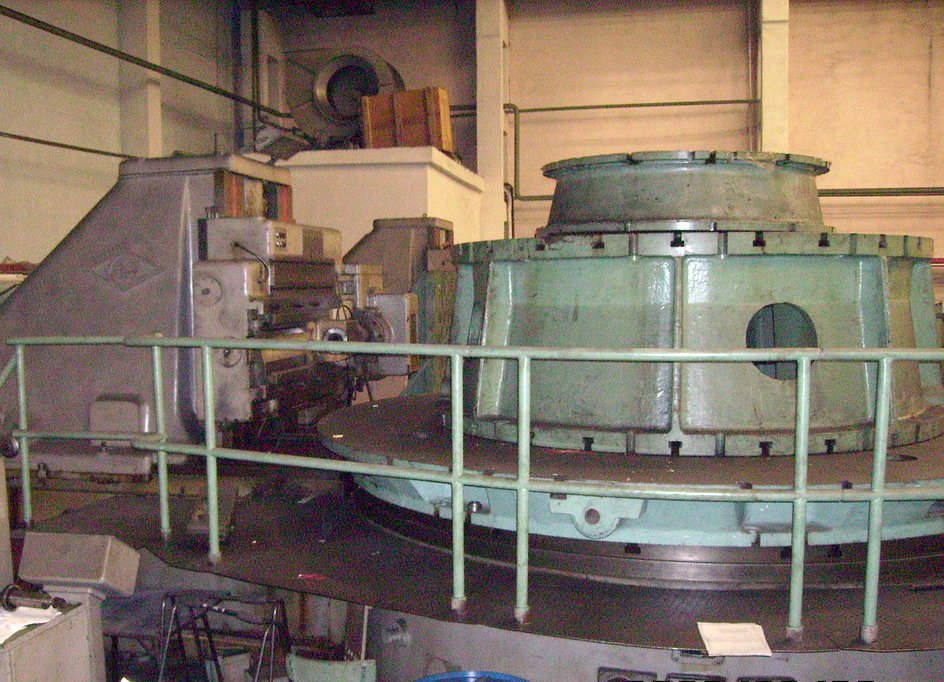

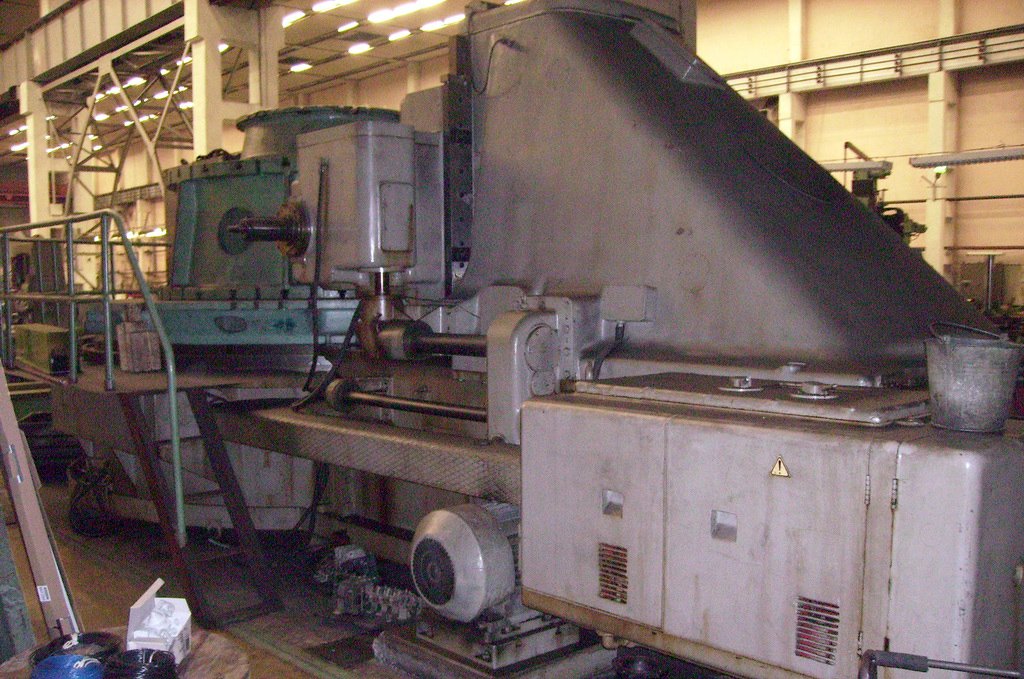

Gear hobber master machine 546M
Workpiece diameter, mm from 2250 till 5000
Module, mm 16
Number of teeth of the gear 120-800
Diameter of gear cutting heads, mm 320
Table diameter, mm 3800
Distance between surface of the table and center line of gear cutter, mm 550-950
Distance between centers axes of table and gear cutter, mm 1150-2700
Speed of tool spindle rotation, rpm 5.6-46
Radial feed per revolution table, mm/rev 0.093-3.1
Main motor power, kW 14
Weight of workpiece max, kg 40000
Machine weight, kg 75050
