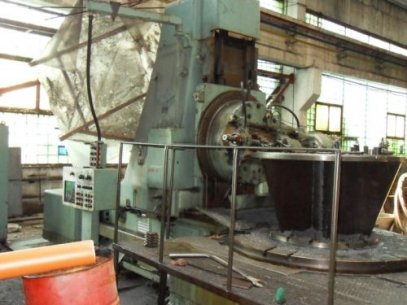

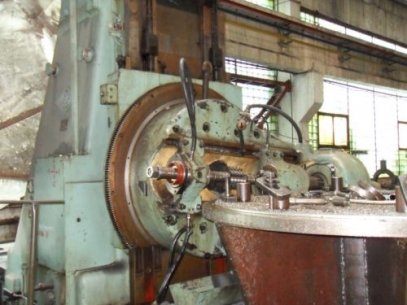

Machinery tool provides high accuracy of processed wheels.
It has tail-stock.
Specifications:
Max diameter gears cut: 2000 mm
Max vertical moving of milling support: 900 mm
Max module of processed wheel (not less):
-Worm mill: 20
-Disk mill: 25
-Manual mill: 30
Table diameter: 1800 mm
Max work-piece weight: 20 ton
Max corner: +/- 45 degree
Diameter of installed worm mills: 300...500 mm
Amount of cuting teeths: 10...1800
Spindle speed: 8...125 rpm
Electricity: 50 Hz, 380 V
Main motor power: 20 kW
