- precision guide elements which are covered and mounted
free of clearance, pre-stressed linear bearing units on
non-rusting guide shafts, adjustable by ball bearing screw
- stroke of 230 mm for chop, layered and longitudinal cuts.
Handling by handwheel
- automatic feedA1 - X - axis infinitely adjustable, incl.
end switch and automatic return motion

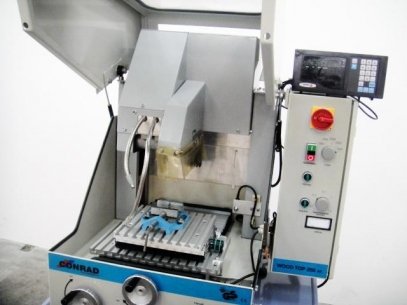

- Y-table with t-slots, stroke 60 mm, scaling 0.05 mm, with
handwheel

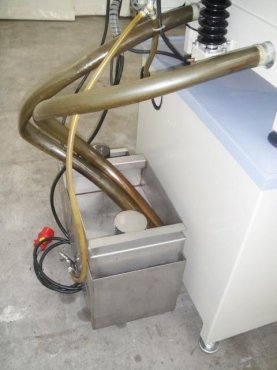

- cooling agent device 70 litres stainless steel with mud
sump, on rolls
- solid machine floor unit with level regulating stands

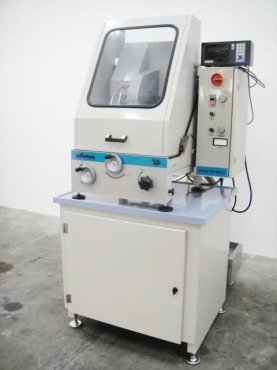

- digital display for Z-axis for exact positioning of
cut-off wheel respectively for re-adjusting of the abrasion
of the cut-off wheel
- electrical data 380V / 3KW
- space required width - 900 x height - 1,900 x depth -
approx. 1,200 mm
