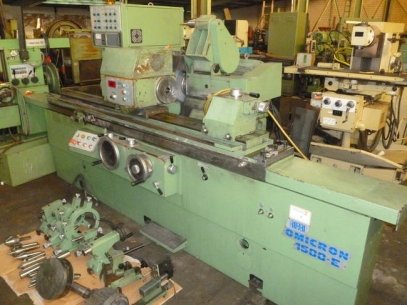

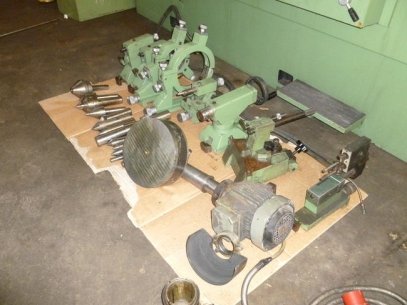

sh. hydr. Cylindrical Grinding Machine Make ROBBI / Italy model 1500 ET Omicron machine no. 159 157 Year 1992 Grinding length 1500 mm, center height 180 mm max workpiece 355 mm max. Hydraulic power between the centers 250 kg. Table speed infinitely 0 3000 mm / min table pivoted to each side 5 workpiece spindle head: spindle speeds stepless 0300 rpm holding taper: MT 5 tailstock quill work head MK 4 max. 90 pivoting spindle head 2 spindle speeds 1450 + 1600 rpm max. 90 swivel boat wheel width and 450/50 mm internal grinding attachment spindle speed 17000 rpm spindle 60 mm min. / Max. Grinding-18 100 mm max. Grinding depth 130 mm, 30 mm Auto Schleifkopfeilgang feed grinding wheel feed 0.01 0.04 mm one. Grinding head spindle motors delivery 2 mm 5.5 kW workpiece spindle 0.75 kW 0.75 kW hydraulic internal grinding spindle 1,1 kW Overall dimensions: Length 4000 mm Width 1700 mm Height 1850 mm Weight with cabinet 4200 kg By: Size Control Marposs E 9 Micromar 3 internal grinding attachment Einstechschleifeinrichtung 2 closed. Lynetten 10 100 + 100 mm 170 mm 2 open Lynetten Schleifscheibenauswuchtdorn magnetic chuck 250 mm with MT 5 Winkelabrichtgerät, Radiusabrichtgerät dressing on the tailstock 4-jaw chuck 250 mm
