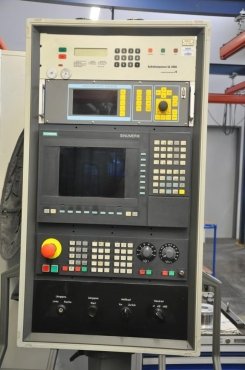

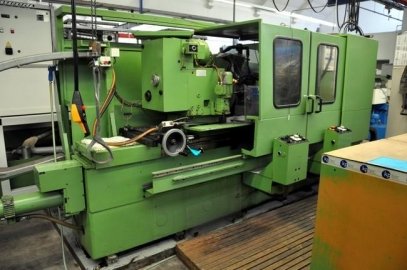

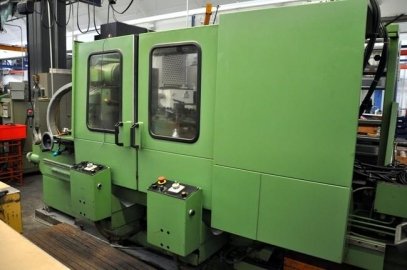

External grinding machine manufacturer: Schaudt Model: B7 1500 control: SINUMERIK 810 G Year: 1982 1 Technical manual data outside loops max. : 500 mm max grinding w / o gr steady rests 360 mm grinding length: 1500 mm kl. Grinding length: 2 mm max grinding length b. Plunge: 1497 mm Height: 180 mm Tailstock quill MK 7 80 mm 50 mm workpiece spindle quill spindle bore. MK5 60 Table kl / g. Swivel 3 / 9.5 / 12.5 gr grinding wheel: 750 mm, max width: 100 mm max. Peripheral speed: 45M / s Gröster workpiece weight: 500 kg Area required approximately 6 x 4.5 m, height: about 2m total power requirement: 40 kW Note: The machine was in 1996, upgraded to Siemens control the machine in operation, and can be visited by appointment be. The machine is released from week 20 2012th
