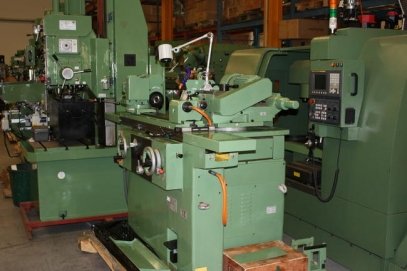

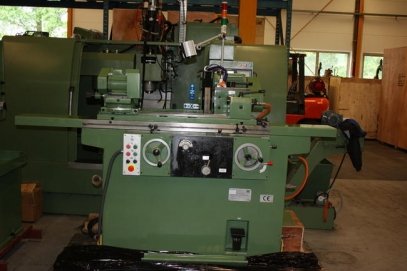

center height 4 "
center width 20 "
grinding length 20 "
grinding diameter 4.9 "
work piece weight (max.) 22 lbs
inside grinding diameter 0.4 - 1.6 "
inside grinding depth 2 "
table feed, infinitely variable 1.95 - 175.5 "/min
table, swivels right and left 9 °
headstock
speed range (6) 300 - 1,040 rpm
swivel range R + L ± 45°
spindle taper MT 4

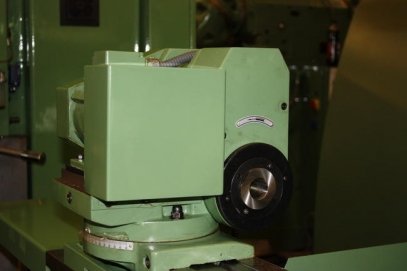

grinding headstock
grinding spindle speed 1,800 rpm
inside grinding spindle speed 17,000 rpm
grinding headstock swivel range ± 180 °

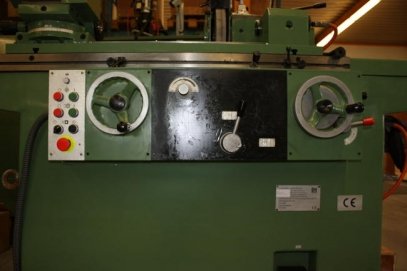

feed
feed per hand-wheel rotation X-axis 0.0197 "
feed per scale division X-axis 0.000098 "
tailstock
tailstock taper MT 2
accuracies
accuracy in the chuck, outside 0.0002 "
accuracy in the chuck, inside 0.0002 "
accuracy between centers 0,003 mm / 0.00012"
roughing depth, outside ra < = 0,32 µm Ra
roughing depth, inside ra < = 0,64 µm Ra
drive capacity
machine drive capacity 4.7 Hp
measures and weights
grinding wheels dimensions 12x2x1 "
overall dimensions 88x46x63 "
weight 3,960 lbs

-
