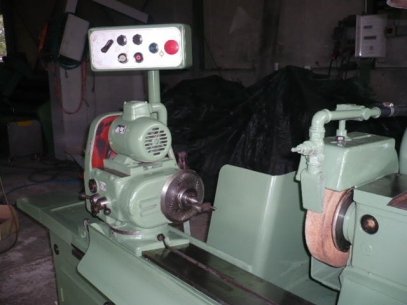

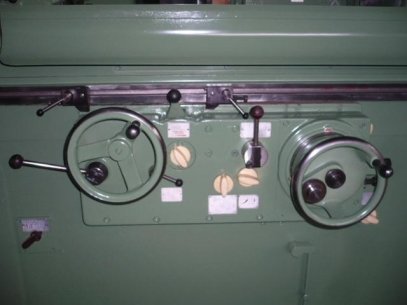

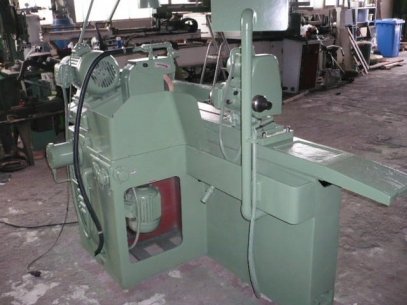

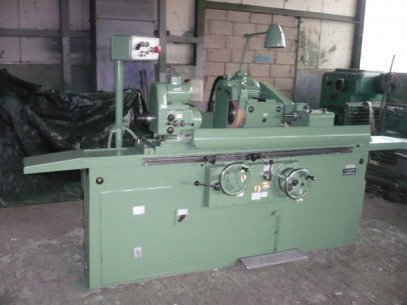

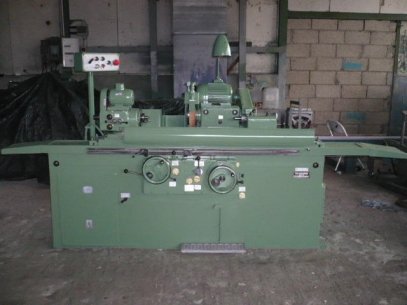

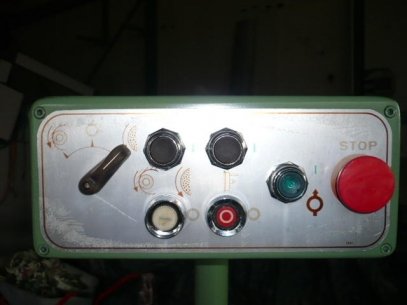

Cylindrical grinder Tos two UD 1000 290 mm swing diameter Wheelbase 1000 mm wheel diameter / hole 350/127mm 50mm width of the wheel, rotate the arm of 70 mm Max workpiece weight 30 kg in spindle Morse 3 in cylindrical tailstock quill Morse 3 Chuck diameter 125 mm spindle turning 45 working spindle rotation 90-sided rotating table 8, 7, 6 spindle speeds: 1640.1950 rev / min spindle speed: 6 degrees 38-380ot/min maximum longitudinal movement of table 1070 mm lateral movement of the grinding spindle 180mm quick adjustment of grind. 35 mm spindle table continuously variable 0.1-6m / min feed grinding spindle 0.005 to 0.05 mm / diameter plunge feed self-3mm 0.05 min / Total 6.9 kW electric field of the machine: Length 4290 mm Width 1520 mm Weight the machine 2500 kg
