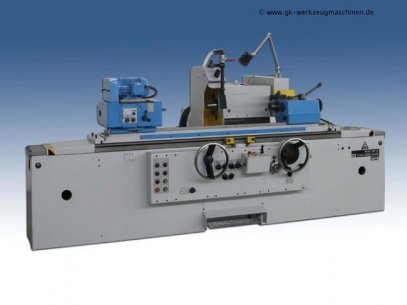

one general overhauled cylindrical grinding machine, make TOS, type BHU 32 x 1.000
Our general overhauling includes:
regrinding and scraping of all guide ways including lower and upper side of the table. Replacement of all main components. Complete new electric including cabinet according to "CE". Complete new paint (2 colors), 48 hours test run. We guarantee new machine accuracy, technical and optical execution like new with 12 months full warranty.
-grinding diameter mm 315
-grinding length mm 1000
-centre height mm 157,5
-grinding wheel diameter x bore x width mm 500 x 80 x 203
-max. width of grinding wheel mm 200
-max. width of built up grinding wheel mm 225
-swing in open rest mm 110
-swing in closed rest mm 110
-diameter of chuck mm 200
-turning angle of diving wheel head ° 90
-dimensions of the machine ca. mm 4887/2320
-taper of tailstock quill morse 5
-diameter of used grinding wheel mm 380
-taper in work spindle morse 5
-taper of tailstock quill morse 5
-standard accessories-
-grinding wheel flange puller
-wheel flange suspension
-balancing mandrel
-complete sedimentation type cooling equipment
-splash guards
-workpiece drivers
-halogen lamp
-technical documentation
-grinding wheel 500 x 80 x 203 mm
-morse centres MK 5
-grinding wheel flange width 80 mm
-open steady for swing diameter 10-100 mm
