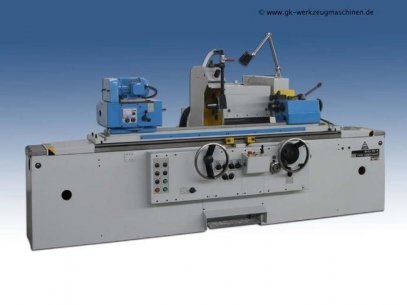

one general overhauled cylindrical grinding machine, make TOS, type BHU 32 x 1.500
Our general overhauling includes:
regrinding and scraping of all guide ways including lower and upper side of the table. Replacement of all main components. Complete new electric including cabinet according to "CE". Complete new paint (2 colors), 48 hours test run. We guarantee new machine accuracy, technical and optical execution like new with 12 months full warranty.
-grinding diameter mm 315
-grinding length mm 1500
-centre height mm 157,5
-grinding wheel diameter x bore x width mm 500 x 80 x 203
-max. width of grinding wheel mm 200
-max. width of built up grinding wheel mm 225
-swing in open rest mm 110
-swing in closed rest mm 110
-diameter of chuck mm 200
-turning angle of diving wheel head ° 90
-dimensions of the machine ca. mm 6217/2320
-diameter used grinding wheel mm 380
-taper in work spindle morse 5
-taper of tailstock quill morse 5
-weight of the machine ca. kg 5900
-standard accessories-
-grinding wheel flange puller
-wheel flange suspension
-balancing mandrel
-complete sedimentation tape cooling equipment
-splash guards
-work piece drivers
-halogen lamp
-technical documentation
-grinding wheel mm 500 x 80 x 203
-morse centers MK 5
-grinding wheel flange width mm 80
-workpiece driver
-open steady for swing diameter mm 10-100
