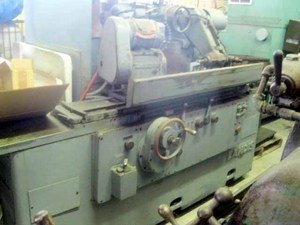

14" x 36" Landis Model 2R Universal ID/OD Cylindrical Grinder
Specifications:
14" x 36" Landis Model 2R Universal ID/OD Cylindrical Grinder
S/N: 856-40 New: 1975
EQUIPPED WITH:
Swing Down Internal Grinding Attachment W/Spindle. Self-Contained "In The Base" Coolant System. Machine Features Hydraulic Operation. Auto Table Traverse. Auto Infeed. Dual Live/Dead Headstock Spindle . 14" Grinding Wheel. Electronic Speed Control For Workhead. Bijur One-Shot Lubrication System For Wheelhead. 1/3 HP 3/60/230 Volt Workhead Drive Motor. 1/4 HP 3/60/230-460 Volt Coolant Pump Motor W/Internal Reservoir. 1 HP 3/60/220-440 Volt Internal Spindle Grinding Motor. 2 HP 3/60/220-440 Hydraulic Pump Motor. 2 HP 3/60/220-440 Volt Wheelhead Drive Motor.
SPECIFICATIONS:
Maximum Swing Over Table 14-31/32"
Distance Between Centers 36"
Min. Dia. Wheel To Grind Zero Dia. Work On Centers 9"
Swivel Table Graduated (In. Per Foot) 3.5"
Swivel Table Graduated (Deg. Included Angle) 16°
Work Carriage Traverse Speed 2-240 IPM
Traverse Per Turn Of Handwheel: Slow 100"
Traverse Per Turn Of Handwheel: Fast 1"
Grinding Wheel 14" dia x 2"W x 5"H
Swivel Range: Upper 180°
Swivel Range: Lower 60°CW, 30° CCW
Grinding Wheel Spindle Speeds (2) 1720-2185 RPM
Max./Min. Distance Wheel Centerline to Work Centerline 15.5" / 1.5"
Work Diameter Reduction Per Revolution of Handwheel 0.100"
Automatic Infeed @ Table Reversal on Dia. 0.0003" To .004"
Infinitely Variable Workhead 30-150 RPM & 120-600 RPM
Workhead Taper #10 Jarno
Dia. Of Hole, Workhead Spindle 1"
Workhead Swivel Range 120°
Workhead Spindle Nose 5A-2
Tailstock Taper #6 Jarno
Approx. Weight 7200 lbs
