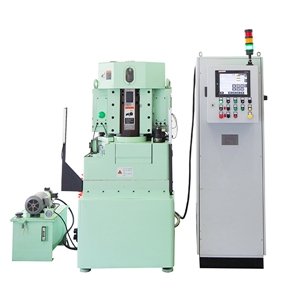

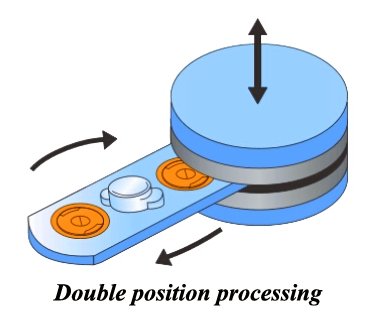

HMP-208 process the parallel top and buttom end surfaces at the same time, realizing rough and fine grinding by only once.
Processing range:
Grindable work O.D. (max):φ140 mm
Grindable work height:2-50mm
Suitable for processing parts with high precision demands.
CPK≥1.33
Flatness≤ 2 μm
Parallelism≤ 2 μm
Surface roughness≤ 0.4 μm
Dimension tolerance≤ 2 μm
Suitable for high efficiency processing:
cycle time: 10-15s/pc
cycle time:2s/pc
Specifications:
Item Parameters Unit
Grindable work O.D. (max) φ140 (Or according to demand) mm
Grindable work height 2-50 (Or according to demand) mm
Maximum speed of grinding spindle 1450 rpm
Grinding wheel/ Diameter CBNΦ305-Φ355mm mm
Feed rate of wheelhead table 0.003-3.125 mm/s
Chuck revolution speed 0-104 (Or according to demand) rpm
Cycle time 10-15(According to workpiece features) s
Grinding spindle power 11 kw
Total power 26 kw
Net weight 4 T
Floor space(L×W×H) 1100×1500×2000 mm
Flatness ≤2 μm
Parallelism ≤2 μm
Dimension tolerance ≤2 μm
Surface roughness ≤Ra0.4 μm
