Description:
G&L Exactamatic Drill Point Gringer, 1 HP, 5" Hole Dia., Air Feed Attachment, Dust Collector, #701,702,703,705
Specifications:

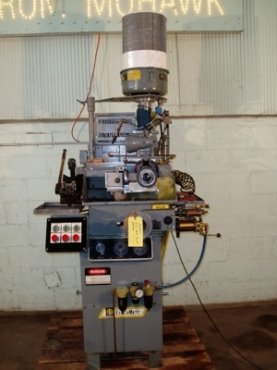

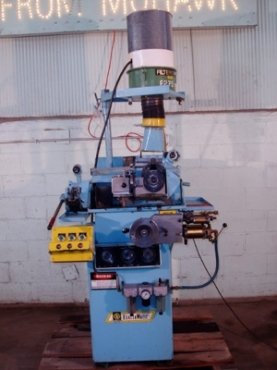

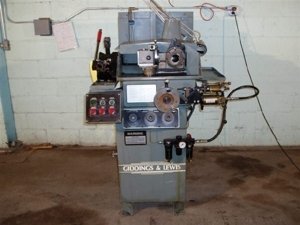

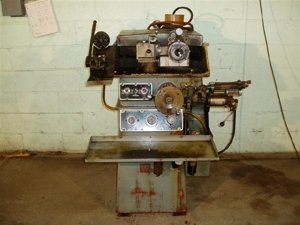

#701, 702, 703, 705 Giddings & Lewis / Winslow “Exactamatic” Drill Point Grinder
S/n: 940-00301-79
Mfg: 1980
Model: HC
SPECIFICATIONS:
Drill Diameter Capacity, Range: 1/16" to 1.5"
Drill Diameter, Conventional Point 1/16" to 1.5"
Drill Diameter, 4-Facet Point 1/16" to 1.0"
Drill Diameter, Helical Point 1/16" to 1.0"
Drill Diameter, Racon Point 1/16" to 1.0"
Drill Diameter, Split Point 1/16" to 0.5"
Point Angle Degrees, Range 90 To 140
Grinding Wheel Diameter, Maximum 12"
Grinding Wheel Width, Maximum 3/4"
Grinding Wheel Hole Diameter 5"
Spindle Motor, Horsepower 1 HP
Workhead Motor, Horsepower 1/4 HP
Floor Space Required, W X D 4'2" X 3'2"
Weight, Approximately 1100 LBS
EQUIPPED WITH:
Air Feed Attachment (Optional)
Grinding Wheel Dresser
Coolant System (Built-In)
Filtermist Dust Collector
Machine Condition: Excellent
Machine Location: Cincinnati, OH
Dimensions:
4'2" x 3'2"
Weight:
1100lbs
