Precision drill grinder manufacturer TATAR Type: Universal

Country: SWITZERLAND / swiss made

Direct service from / revision!


Data:

Drill bit diameter (0.3 mm - 16 mm)
Acute angle: 75 - 145 °
Relief from 0 - 40 °
Wheel drive: 380 V / approximately 0.18 kW
Footprint: 420 x 420 x 470 mm
Weight: 35 kg
Dressing: Diamond

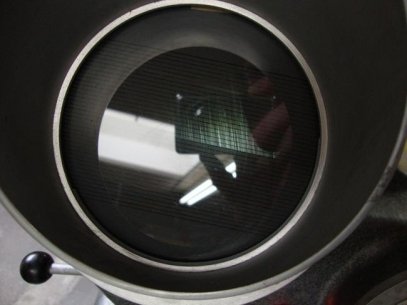

With new LED optics system with a screen, to check the drill ground.


State of the machine:

Fresh from the big revision (in BERGER technology GmbH Thun / Gwatt). To
Part of new bearings, new sapphire glass, various other parts replaced, new
Basic setting is made, new focusing screen, new wheel, engine cleaning, etc.
Machine is in good condition!

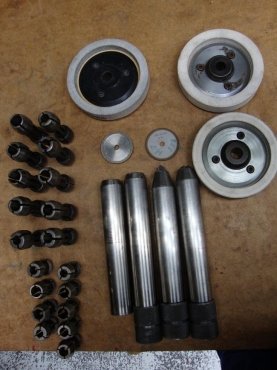

Accessories:

Chuck mm 0.3 - 6.00 mm
Chuck mm 6.0 - 10.00 mm
Chuck 10.0 mm - 16.00 mm
User-TARTAR (GERMAN)
-Various grinding wheels for HSS drills and Ausspitzscheiben
Flex-shaft (flexible shaft)

The machine is currently operating with ceramic grinding wheels, but can also be used with galvanized or resin bonded grinding wheels! All Ausspitzscheiben and main wheels of all kinds can be purchased through the company BERGER technology Gwatt / Thun.

Note: Advance counter, the machine can be in Switzerland, with carrier (YIELD) sent. (Secured and packed on a half-range charge CHF 100.00)

Description:

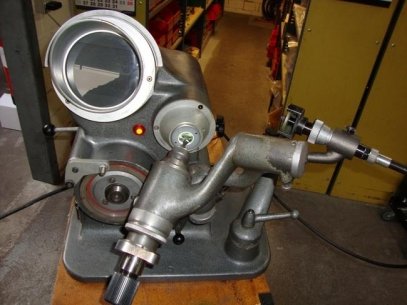

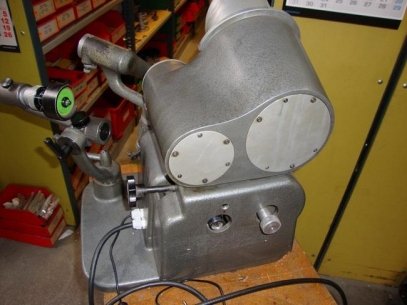

Precision drill grinder TATAR

With it you can grind the 4-Flaechenschliff in many variations
existing cuts and drilling tools in your copy. The
Thinning of the cross-cutting takes place with a separately driven
Ausspitzschleifscheibe, the countless settings and allows angle.
Here, the strength of the machine shown in its entirety. The machine
is both in manufacturing, tool expenses, workshops as well as in
professional tool used in grinding plants. Everywhere, where high
Demands are placed on the drilling tools, both in the HSS as in
VHM region. They are prepared against her for highest demands
to be.
Grinding range 1-16 mm and 20 mm as an option.
As for conventional drill grinders, the TARTAR and
MEGA-POINT blue-line, worldwide, the measure of all things. It is robust,
accurate, versatile, grinds carbide as HSS, is very durable and therefore
stable in value! Not for nothing are Used drill grinders,
of this type in a short time traded at maximum prices.



Original price. Starting at EUR 12,500 - without abrasives, etc.


Current price now: EUR 3900 - (with accessories).

-
