Precision drill grinder manufacturer TATAR Type: Universal
Data:
Drill bit diameter (0.3 mm - 16 mm)
Acute angle: 75 - 145 °
Relief from 0 - 40 °
Wheel drive: 380 V (for 220 V or adjustable), approximately 0.18 kW
Footprint: 420 x 420 x 470 mm
Weight: 35 kg
Dressing: Diamond

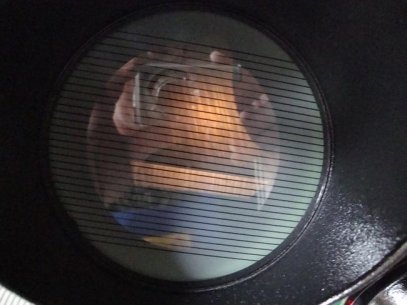

With the optical system and a separate screen to control the drill.
State of the machine:
Fresh from the big revision (in BERGER technology GmbH Thun / Gwatt). To
Part of new bearings, new sapphire glass, various other parts replaced, new
Basic setting is made, new ground glass, machine cleaning, etc.
Machine is in very good condition!
Accessories:

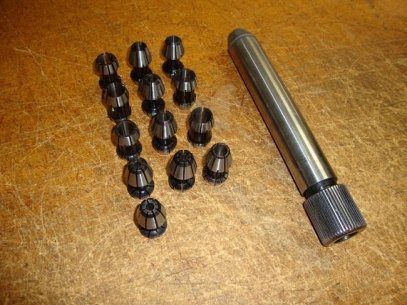

Chuck mm 0.3 - 6.00 mm
Chuck mm 6.0 - 10.00 mm
Chuck 10.0 mm - 16.00 mm
Additional lens for very small drill bit in a 1.0 mm
Original manual TATAR (GERMAN)

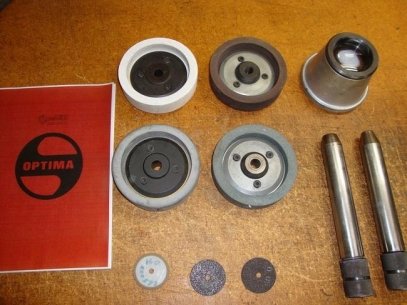

-Various grinding wheels and carbide drills and HSS for Ausspitzscheiben
LISTA-drawer insert
Flex-shaft (flexible shaft)
Description:

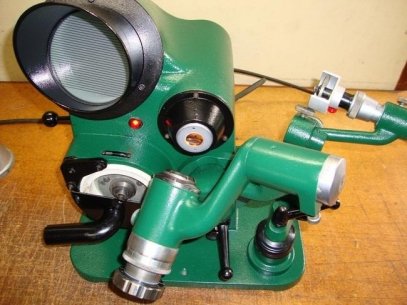

Precision drill grinder TATAR
With it you can grind the 4-surface grinding in many variations
existing cuts and drilling tools in your copy. The
Thinning of the cross-cutting takes place with a separately driven
Ausspitzschleifscheibe, which allows numerous settings and angles.
Here, the strength of the machine shown in its entirety. The machine
is both in manufacturing, tooling costs, as well as workshops in
professional tool used in grinding plants. Wherever high
Demands are placed on the drilling tools, both in the HSS as in
VHM region. With it, you are equipped to meet the highest requirements
to be.
Grinding range 1-16 mm and 20 mm as an option.
As for conventional drill grinders, the TARTAR and
MEGA-POINT blue-line, worldwide, the measure of all things. It is robust,
accurate, versatile, grinds carbide as HSS, is very durable and therefore
stable in value! Not for nothing are Used drill grinders,
of this type in a short time traded at premium prices.
Watch the video of the virtually identical MEGA-POINT
blue-line (successor) of the TARTAR:
youtube.com/watch?v : Jd1iHXwrVvU
Price: from CHF 14'800 Today - / -, etc., without abrasives. (EUR 12'340.)
(Errors and omissions in the specifications, details
and prices subject to prior sale!)

-
