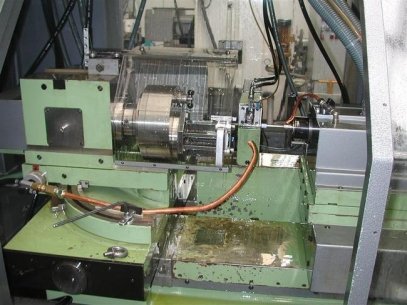

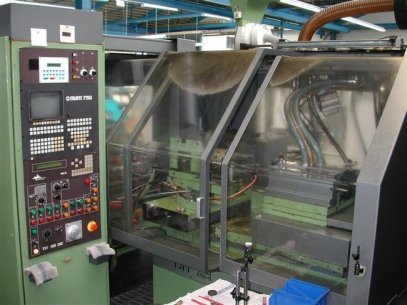

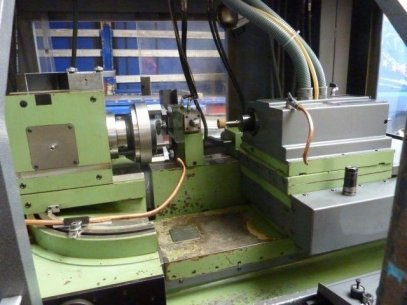

CNC Internal Grinding Machine Manufacturer: Tripet model: TST 100 CNC Technical data Grinding diameter range from 0.5 to 50 mm Maximum grinding length: 100 mm Height: 102 mm Axial movement: Z-axis - distance 350 mm - Drive Indramat AC motor - speed 0-9 m / min - Resolution 0.0005 mm 0.0005 mm increments programming workhead swiveling: B-axis (manual version) - 60/-30 degree swivel angle vernier first 100 divisions Division 12 "1 turn 20 3 turns 1 degree workhead data (Camlock 3) - Axial displacement of 150 mm - spindle bore 25 mm - inner cone CM 4 - Max spindle 25 kg load - Max roundness error <0.0005 mm - speed range 45-1600 rpm - constant speed of 45 rpm setup - drive motor 0.75 kW workpiece spindle radial motion: U-axis (manual version) - Travel disatnce 100mm - vernier handwheel 1 pitch 0.01 mm radius at 1 turn to 2 mm radius grinding head radial movement of X-axis - distance 50 mm - Drive Indramat AC motor - speed 0-2 m / min - Resolution = 0.000125 mm - 0.0005 mm increments programming standard Wheelspindle: - Type: Fischer HJN 1028 - spindle diameter 100 mm - Maximum speed 28.000 rpm - Drive motor 3 kW - motor speed range 2000-6000 rpm - hydraulic pump unit with a self-regulating: - Pump drive motor 2.2 kW - operating pressure: 35 bar - Maximum flow rate 20 l / [...Technical data truncated]
