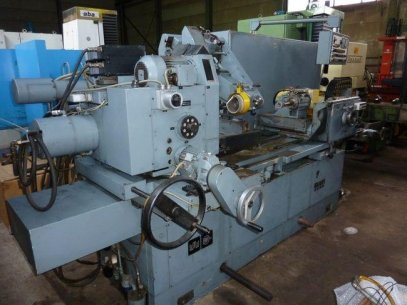

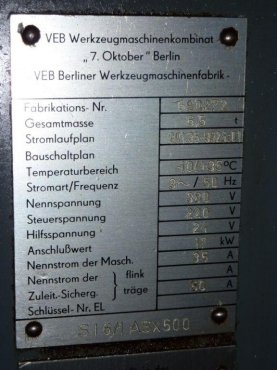

Make / make: BWF type / type: SI 6 / 1 AS x 500 Year / Year of Make: Maschinen-Nr./Machine-No. 690 272 dimensions / dimensions: 3.6 x 2.4 x 2 m total power requirement / total power requirement: 16 kW Technical details / technical details: inner diameter / internal diameter: 400 mm depth of grinding / grinding depth: 500 mm swing / swing diameter: 500 mm Passage passage / max. 580 mm spindle mounting diameter / grinding spindle taper diameter: 100 mm wheel diameter / grinding wheel diameter: pivotal 0-250 mm workpiece spindle / workpiece spindle swivable: + / - 5 / 30 revs / turning speed range: 40 - 400 rev / min spindle head transversely-forward / out / total deliveries 320 mm 1 division = 0.01 mm Table longitudinal movement / table longitudinal travel (min. / max.): 0.1 - 8 m / min table speed / table speed: 0.1 - 8 m / min table lift / table stroke: 800 mm
