Stock-No. 1106-SF256a

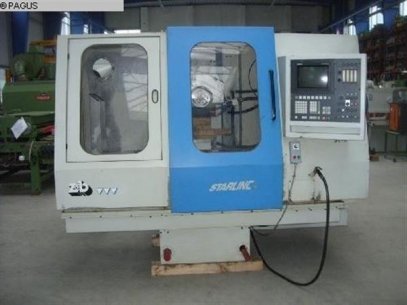

Type of machine Optical Profile Grinding Machine

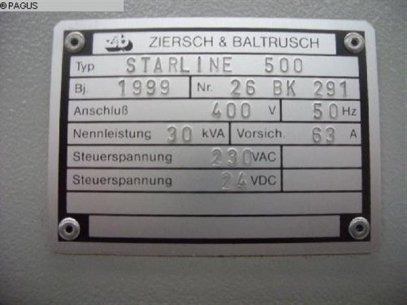

Make ZIERSCH & BALDRUSCH
Type Starline 500 CNC
Year of manufacture 1999
Type of control CNC
Storage location Pagus NL. Jena Germany
Country of origin Germany
Specifications:
Technical details
grinding length 600 mm
grinding width 250 mm
workpiece height 380 mm

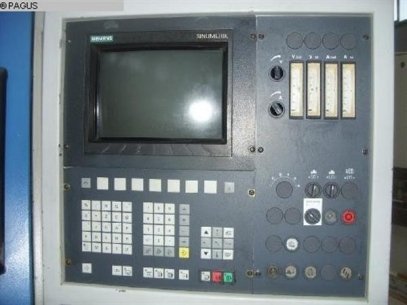

Sinumerik
max. dia. of grinding wheel 300 mm
weight 4000 kg
total power requirement 12,5 kW
grinding wheels Ø 400 mm
max. width of grinding wheel 100 mm
grinding wheel hole diameter 127 mm
turning speeds 470 - 12030 1/min
x-axis 600 mm
y-axis 300 mm
z-axis 250 mm
grinding range 450 x 200 mm
distance spindle nose and table 500 mm
table load 250 kg
dimensions of the machine ca. 2600 x 2100 x 2400 mm
coolant

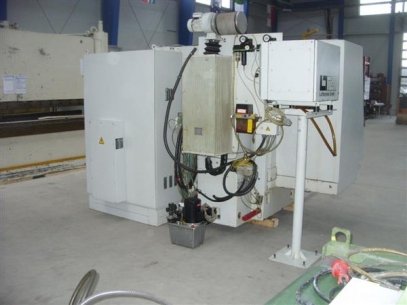

switchgear cabinet 1300 x 800 x 2000 mm
hydraulical unit: 450 x 350 x 500 mm
