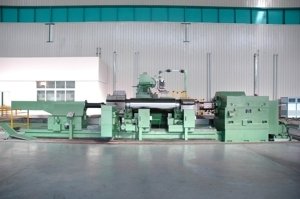

Type: 1250mm*5000mm*25T
Distance between Centers (L): ≥5m (1m increment)
Roll Measuring Range Dia (mm): 200-1250 7.86 – 49.14
Workpiece Weight Max (t): 25
Grinding stock Travel (mm):900 35.38
Curve Height Max (mm): ±2 (radius)
Grinding Wheel Specification (mm):900×100×305
Grinding Wheel Linear Speed (m/s): ≤45
Headstock Speed Range (rpm): 5-60
Carriage Travel Speed (mm/min): ≤6000 235.85
Grinding Wheel Motor Power (kW): 100
Grinding Max (kg/h): 100
Curve Grinding Accuracy (mm): 0.002
Machine Numerical Control System: SIEMENS 840D
AC Servo Axis Number: X, U, Z, X1, U1, V
AC Spindle Number: Grinding Wheel, Headstock
HMI Weight (t): 105(6m)
Machine Profile Size (cm):1280×490×300

Type: 1250mm*5000mm*25T
Distance between Centers (L): ≥5m (1m increment)
Roll Measuring Range Dia (mm): 200-1250 7.86 – 49.14
Workpiece Weight Max (t): 25
Grinding stock Travel (mm):900 35.38
Curve Height Max (mm): ±2 (radius)
Grinding Wheel Specification (mm):900×100×305
Grinding Wheel Linear Speed (m/s): ≤45
Headstock Speed Range (rpm): 5-60
Carriage Travel Speed (mm/min): ≤6000 235.85
Grinding Wheel Motor Power (kW): 100
Grinding Max (kg/h): 100
Curve Grinding Accuracy (mm): 0.002
Machine Numerical Control System: SIEMENS 840D
AC Servo Axis Number: X, U, Z, X1, U1, V
AC Spindle Number: Grinding Wheel, Headstock
HMI Weight (t): 105(6m)
Machine Profile Size (cm):1280×490×300

12800×4900×3000mm

105
