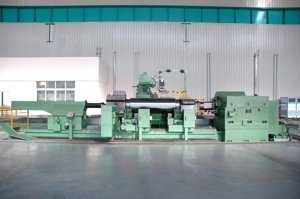

Type: 800mm*5000mm*10T
Distance between Centers (L): ≥4m (1m increment)
Roll Measuring Range Dia (mm): 150-800 5.9 – 31.45
Workpiece Weight Max (t): 10
Grinding stock Travel (mm):900 35.38
Curve Height Max (mm): ±2 (radius)
Grinding Wheel Specification (mm):900×100×305
Grinding Wheel Linear Speed (m/s): ≤45
Headstock Speed Range (rpm)： 5-75
Carriage Travel Speed (mm/min): ≤6000 235.35
Grinding Wheel Motor Power (kW): 60
Grinding Max (kg/h): 60
Curve Grinding Accuracy (mm): 0.002
Machine Numerical Control System: SIEMENS 840D
AC Servo Axis Number: X, U, Z, X1, U1, V
AC Spindle Number: Grinding Wheel, Headstock
HMI Weight (t): 90(5m)
Machine Profile Size (cm):1250×350×300

Type: 800mm*5000mm*10T
Distance between Centers (L): ≥4m (1m increment)
Roll Measuring Range Dia (mm): 150-800 5.9 – 31.45
Workpiece Weight Max (t): 10
Grinding stock Travel (mm):900 35.38
Curve Height Max (mm): ±2 (radius)
Grinding Wheel Specification (mm):900×100×305
Grinding Wheel Linear Speed (m/s): ≤45
Headstock Speed Range (rpm)： 5-75
Carriage Travel Speed (mm/min): ≤6000 235.35
Grinding Wheel Motor Power (kW): 60
Grinding Max (kg/h): 60
Curve Grinding Accuracy (mm): 0.002
Machine Numerical Control System: SIEMENS 840D
AC Servo Axis Number: X, U, Z, X1, U1, V
AC Spindle Number: Grinding Wheel, Headstock
HMI Weight (t): 90(5m)
Machine Profile Size (cm):1250×350×300

12500×3500×3000

90
