Blanchard #22AD-42,Fully Automatic, Re-manufactured W/Warranty
Optional CNC Fanuc Control Available
Specifications:
22" Grinding Wheel Diameter
42" Magnetic Chuck Diameter
44" Swing Inside Water Guards
24" Vertical Range,Standard
3000 LBS. Maximum Load on Chuck
50 HP Grinding Wheel Horsepower
480 Volt /60 Hertz Main Motor
Automatic Servo Feed System
.0001-.100 IPM Down Feed Rates Approximate
6 to 24 RPM Chuck Rotation Speeds
Anticipated Allen Bradley Upgrade Package
.. A-B Ultra 3HP servo drive
.. A-B MP series 3HP servo motor
.. A-B servo motor and encoder cables
.. A-B Panelview 600
.. A-B Panelview cable
.. A-B 10 slot rack
.. A-B SLC 5/03
.. A-B (3) 16 pt. input cards
.. A-B (3) 16 pt. output cards
.. Custom P.B. / PV control station
Including programming, installation, run-off to perform a programable auto cycle.
Automatic Lube System
Standard Coolant System
17,000 LBS. Approximate Base Weight

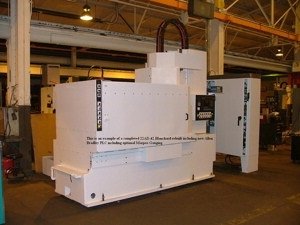

The photos are of an identical machine recently finished for customer. Video of competed projects available at our web site. This machine has optional stainless steel guards, optional marposs system and optional coolant system. We can build it to your requirements, just ask. We have this package available to retrofit your old A Model complete.
Complete rebuild specifications available via proposal. This machine is being sold as a totally remanufactured machine with a full warranty.
22AK Model Available also (With Drag Out Conveyor)
