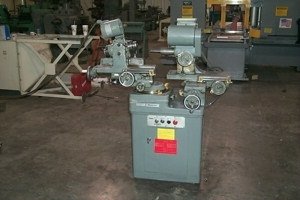

Cincinnati Milacron “Monoset” Tool & Cutter Grinder
SN: 3152A01770084 Model: MT Year: 1978

CAPACITY
Swing: 12”
Collet Capacity: .012-1¼”
Max Grinding Wheel Diameter: 4”
Length of work between spindle and tailstock: 6”
Workhead slide travel:
Longitudinal: 5 ¾”
Cross: 5 ¾”
Workhead Angular Adjustment:
Table Swivel: 325 degrees
Above & Below Center: 40 degrees
Wheelhead Slide Travel:
Longitudinal: 6”
Cross: 7 ½”
Wheelhead Vertical Movement:
Above Center: 4.5”
Below Center: 5”
(3) Wheelhead Spindle Speeds: 4000 RPM; 5729 RPM; 8000 RPM
(1) Workhead Spindle Speed: 436RPM
EQUIPPED WITH:
Hardened Ways & Screws
Bijur Lubrication System
½ HP Wheelhead Motor
¼ HP Workhead Motor
Misc. Tooling
