Stock-No. 1124-0001194

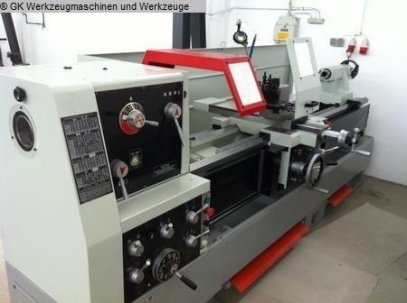

Type of machine Center Lathe
Make ANNN YOUNG
Type DY-G 560/2000
Year of manufacture 2012
Type of control conventional
Storage location ex stock
Country of origin Taiwan
Delivery time ex stock
Freight basis ex Stockstadt, free loaded on
Technical details:
turning diameter over bed 560 mm
turning diameter over slide rest 310 mm
turning length 2000 mm
bed width 410 mm
spindle nose D1-8
spindle bore 102 mm
number of spindle speeds 25-1600 U/min
transmission ratio 12
quill stroke 180 mm
diameter of quill 75 mm
turning dia. in gap 800 mm
max. workpiece weight between centres 3000 kg
longitudinal feeds 0.05~0.70 mm/U
0.025~0.35 mm/U
sleeve conus 5 MT
total power requirement 11 kW
weight of the machine ca. 3 t
dimensions of the machine ca. 3800x1400x1530 mm
Accessories
3-Axis DRO SINO

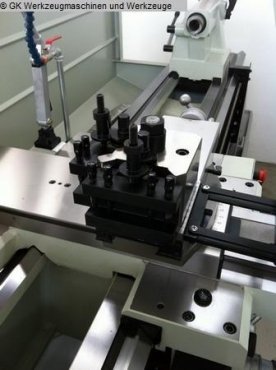

tool post holder Multifix Groesse C
3 jaw chuck Ø 250 mm
4-jaw independent chuck 315 mm
fixed steady
follower rest
electrical chuck guard
splash gurads
coolant system
automatic lubrication system
rapid travel - longitudinal + cross
saddle mounted chip guard
adjustable bed stop
working lamp
dead center MK 5
tools
technical documenation in German language
CE-certificate
Additional information
+++SPECIAL PRICE+++SPECIAL OFFER+++
main features:
- high speed
- high spindle torque
- big spindle bore
- auotmatic forced lubrication
- hardened and ground guideways
- brand-new design exterior

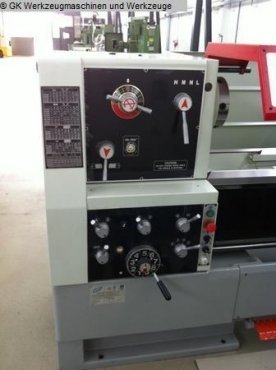

- head stock with mechanical clutch or electromagnetic clutch
- CE certificate of TÜV Rheinland (Germany) and CQC (China)
