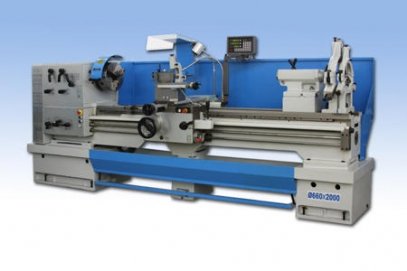

main features: - high speed
- high spindle torque
- big spindle bore
- auotmatic forced lubrication
- hardened and ground guideways
- brand-new design exterior
- head stock with mechanical clutch or electromagnetic clutch
- CE certificate of TÜV Rheinland (Germany) and CQC (China)
-turning diameter over bed mm 660
-turning diameter over slide rest mm 440
-turning length mm 2000
-tunring diameter in gap mm 870
-lenght of gap mm 250
-bed width mm 394
-spindle taper D1-8
-spindle bore mm 105
-spindle turning speed range U/min. 26-1700
-transmission ratio 16
-metrical thread cutting mm/U 0.35-80
-threading whitworth TPI 7/16-80
-diameter of quill mm 75
-longitudinal feed mm/U 0,044-1,48
-cross feed mm/U 0,022-0,74
-taper of spindle bore MK 90/1:20
-range of module thread mm 0,2-40
-range of dimetrical thread DP 7/8-160
-speeds 1/min. 26-1700
-main spindle 110/1:20
-max. travel of cross slide mm 355
-max. travel of top slide mm 150
-total power requirement kW 7,5
-weight of the machine ca. kg 2360
standard accessories:
-3-axis DRO
-4-jaw face plate
-4-jaw chuck
-3-jaw chuck
-left hand wheel apron
-German electrik from Schneider or ABB
-Multifix tool holder C model
-adjustable bed stop (longitudinal)
-steady rest diameter mm 30-200
-follower rest
-drive plate
-dead center MK 5
-center sleeve
-tools
-live center MK 5
-coolant system
-machine work light
-saddle mounted chip guard
-bigger spindle motor with kW 11
-oil gun
-technical documentation in German or Englisch
-2-coloured in grey RAL 7035/ blue RAL 5012
-hardened and ground guideway
-electric chuck guard
-full splash guard
-thread chasing dial
