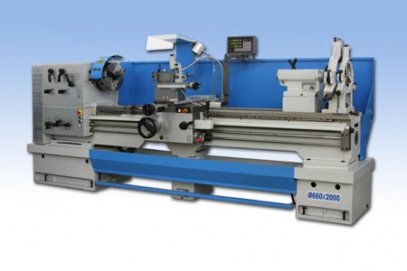

main features:
- high speed
- high spindle torque
- big spindle bore
- auotmatic forced lubrication
- hardened and ground guideways
- brand-new design exterior
- head stock with mechanical clutch or electromagnetic clutch
- CE certificate of TÜV Rheinland (Germany) and CQC (China)
warranty: 12months warranty for parts
payment: 100% before loading
turning diameter over bed 560 mm
turning diameter over slide rest 290 mm
turning length 2000 mm
length of gap 250 mm
turning dia. in gap 760 mm
bed width 394 mm
spindle taper D1-8
spindle bore 105 mm
spindle turning speed range 26-1700 U/min
transmission ratio 16 Stck.
metrical thread cutting 0.35-80 mm/U
threading WHITWORTH 7/16-80 TPI
diameter of quill 75 mm
longitudinal feed 0,044-1,48 mm/U
cross feed 0,022-0,74 mm/U
taper of spindle bore 1100/1:20 MK
range of module thread 0,2-40 mm
range of dimetrical thread 7/8-160 DP
power requirement 11 kW
weight of the machine ca. 2310 kg
accessories:
Metric, 400V 50Hz 3 Phase
4-jaw face plate
4-jaw chuck
3-jaw chuck
Left hand wheel apron
German electric from Schneider or ABB
Multifix tool holder C model
Adjustable bed stop (longitudinal)
Steady rest Ø 30-200mm
follower rest
drive plate
dead center MK 5
centre sleeve
tools
Live center MK 5
coolant system
Machine work light
saddle mounted chip guard
Bigger spindle motor with 11KW
oil gun
technical documenation in German or English
hardened and ground guideway
electrical chuck guard
full splash guard
thread chasing dial
Paint colour: Ash grey/dark grey (RAL 7012) gloss
Gamet spindle bearing
chip bin, removable
clutch electromagnetic
