Height of Center 315 mm
Length between Center 1500 mm
Swing over bed 660 mm
Swing over carriage 400 mm
Spindle bore 105 mm
Speed ​​range from 12.5 to 1120 U / min
Spindle nose DIN 55026 A1-11
Longitudinal feeds range from 0.062 to 7 mm / rev (56 steps)
Crossfeeds range from 0.031 to 3.5 mm / rev (56 steps)
Metric threads 0.5 to 28 mm (31 steps)
Inch thread 1-56 TPI (38 steps)
Module threads 0.25 to 7 mm (21 steps)
Diametral threads 6-4 DP (27 steps)
Quill diameter 100 mm
Quill travel 250 mm
Morse Taper Cone 5
Engine power 11 kW
Weight 4200 kg
Dimensions 3500 x 1260 x 1385 mm

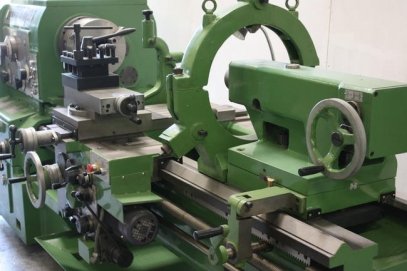

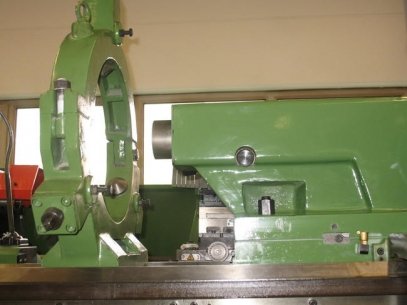

Optional 3-jaw chuck Ø 315 mm, cooling equipment, Quick feed , manual bed lubrication, hydraulic. Clutch and brake system, 4-way tool post, steady rest,follow rest,Digital Readout

-
