Center height 800 mm
Distance between centers 8000 mm
Bed width 755 mm
Swing over bed 1600 mm
Swing over carriage 1240 mm
Spindle bore 128 mm
spindle nose 215/8xM22
Speed ​​range 3.15 - 315 U min / (forward)
Longitudinal feeds range 0.1 - 12 mm / rev 56 steps
Crossfeeds range 0.05 - 6 mm / rev 56 steps
Metric Thread 1 - 120 mm / 44 steps
Inch thread 28 - 1 / 4 turns / inch, 31 steps
Modular thread 0.5 - 60 mm; 45 steps
Diametral thread 1 / 2-56 DP; 38 steps
Quill diameter 160 mm
Quill travel 300 mm
Morse Taper cone 6
Engine power 22 kW
Weight 19400 kg
Dimensions 11100 x 2150 x 2150 mm

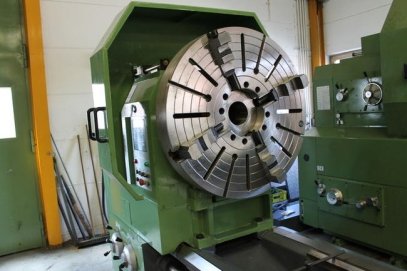

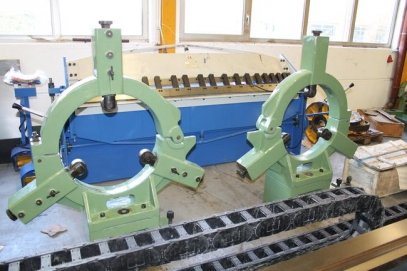

Accessories 4-jaw chuck faceplate 1250mm, two piece steday rest clamping range 285-635 mm and follow rest one piece

-
