MAXIMUM SWING OVER BED WAYS --------------- 1.250 MM
MAXIMUM SWING OVER SADDLE ----------------- 940 MM
MAXIMUM DISTANCE BETWEEN CENTERS ---------- 6.000 MM
MAXIMUM WORKPIECE WEIGHT BETWEEN CENTERS – 30.000 KG
MAXIMUM WORKPIECE WEIGHT WITH 2 STEADIES – 40.000 KG
HOLE THRU SPINDLE ------------------------- 105 MM
SPINDLE SPEEDS ---------- ( 24 ) ---------- 1.6 TO 315 RPM
BED WIDTH 1.100 MM ( 2 BEDWAY )
THREADS, SADDLE --------- ( 96 ) ---------- 1/8 TO 30 TPI
THREADS, TOP SLIDE ------------------------ 1/32 TO 7-1/2 TPI
METRIC THREADS, SADDLE -- ( 81 ) ---------- 1 TO 192 MM/REV.
METRIC THREADS, TOP SLIDE ----------------- 1/4 TO 48 MM/REV.

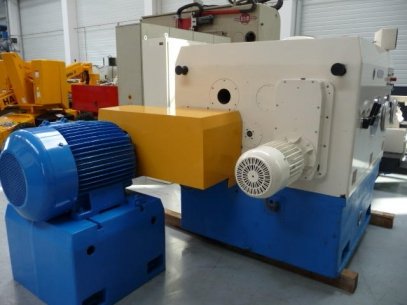

MAIN DRIVE MOTOR -------------------------- 75 KW A.C.
APPROXIMATE MACHINE WEIGHT ---------------- 25.000KG
EQUIPPED WITH ---
4-JAW CHUCK 1.250MM

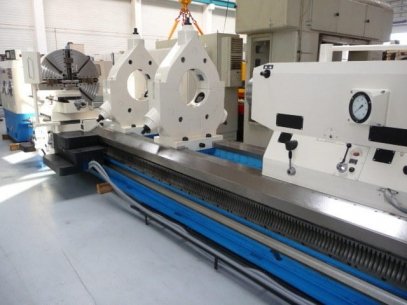

3 POINT ROLLER STEADY REST ( 400 MM CAP. )
4 WAY TOOL POST
POWER TOP COMPOUND SLIDE
POWER RAPID TRAVERSE TO ALL DIRECTIONS
TAPER TURNING LENGTH WITH POWER ANGULAR FEED 600 MM
POWER DRIVEN TAILSTOCK

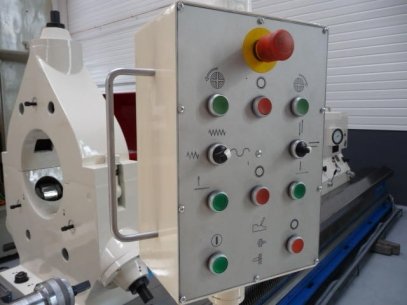

CONTROL STATION
