1.350 mm x 10.000 mm, rebuilt as new machine with compound rest travel,never used, 6 months material warranty,equipped with brand new 3 axis DRO, wide selection of chucks steady rests and the other equipment on request.

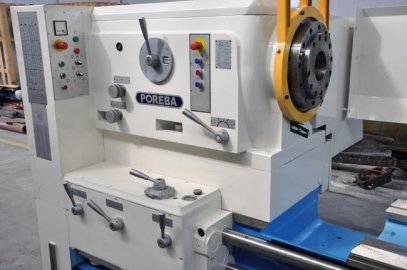

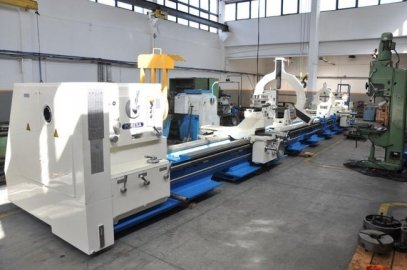

# Lathe „POREBA” TR 135/10M 1.350 x 10.000 mm
- rebuilt:2011 as new
- condition:never used
- Max Swing Over Bed:1.350 mm
- Max Swing Over Carriage:1.050 mm
- Max Swing in Gap:1.650 mm
- Distance between centers:10.000 mm
- Number of spindle speeds (21 levels): 5 – 500 R.P.M.
- Spindle hole:120 mm
- Load Capacity without steadies:9 Ton
- Load Capacity with two steadies:14 Ton
- Load Capacity in Chuck:2 Ton
- Main Drive: 27/41kW
BED (hardened)
EQUIPMENT
- Chuck: on request
- Steadys: on request
- Threads:yes
- Coolant System:yes
- Digital Read - Out brand new - 3 axis

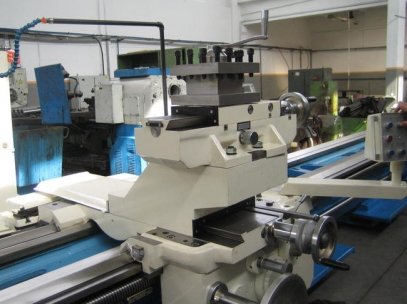

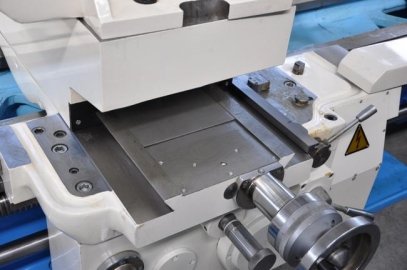

CARRIAGE
- Range of longitudinal feed rates:
70 standard feed rates0.04 – 5 mm/rev.
70 cross feed 0.18 – 25 mm/rev.

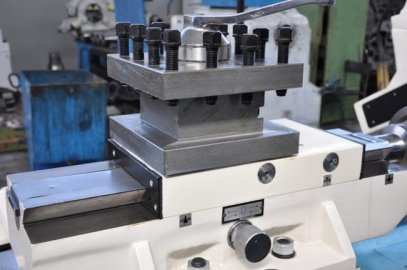

70 tool slide rates 0.08 – 1.25 mm/rev

- Overall range of threads cut with carriage
along the bed:
62 steps metric:2 – 240 mm
61 steps inch:¼ – 40 tpi
50 modular:0,5 – 60 mm

OVERALL DIMENSIONS
- Length of the lathe:12.800 mm
- Width:2.130 mm
- Weight:18,5 Ton

-
