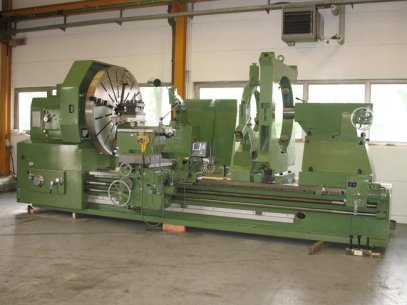

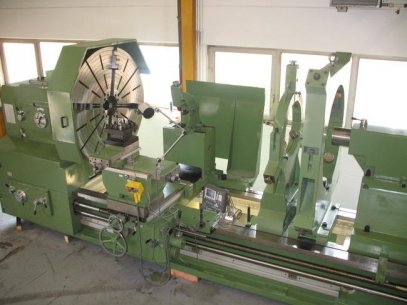

Heavy duty lathe DKM 2000.3C-1 Technical data:
Center Height: 1000 mm
Distance: 3000 mm
Swing over bed: 2000 mm
Swing over support: 1600 mm
Spindle bore: 130 mm
Speed range: 2.5 - 250 rpm
Spindle nose: A2-15
Longitudinal feeds range: (97) 0.032 to 12 m / U
Area cross feeds: (97) 0.016 - 6 m / U
Metric thread: (45) 1 - 120 mm
Inch Thread: (42) 1 / 4-30 tpi
Module pitch: (46) 0.5 - 60 mm
Diametral thread: (48) 0.5 to 60 DP
Quill diameter: 240 mm
Spindle stroke: 300 mm
Taper: 80 / 1:7
Engine power: 30 kW
Weight: 23000 kg
Dimensions: 6520 x 2380 x 2510 mm

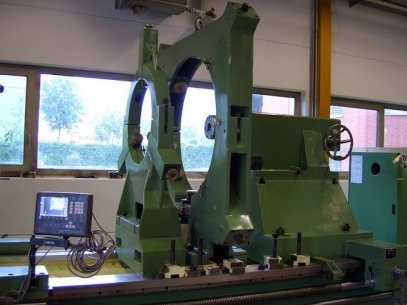

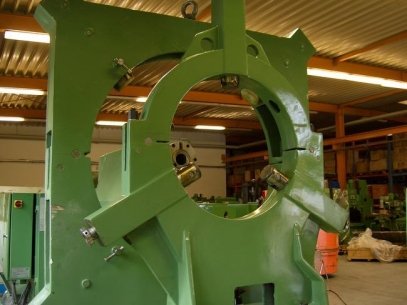

Accessories: Steady + Follow rest, digital display for 4 axis, coolant, rapid, faceplate 1600 mm, hydraulic brake

Heavy duty lathe DKM 2000.3C-1 features:
Large bed width of 1100 mm
Gears hardened and ground helical gears
clutch hydraulic system pressure regulated
spindle brake hydraulic pressure regulated
Lubrication with integrated pump
adjustable spindle bearing
Rapid in the longitudinal and Plan
Overload clutch in the lock box
including 4 - axis - Digital Display

-
