Stock-No. 1124-0000041
Type of machine Center Lathe
Make WEWAG / POREBA
Type 400 x 3.000
Year of manufacture 1971
Type of control conventional
Storage location Stockstadt
Country of origin Poland
Delivery time sofort ab Lager, Zwischenverka
Freight basis ex stock, loaded free on truck
Technical details:
turning diameter over bed 800 mm
turning diameter over slide rest 510 mm
turning length 3000 mm
turning dia. in gap 1080 mm
turning length in the crank 350 mm
spindle tailstock- speed ranges 21
spindle tailstock- turning speed range 10-1000 U/min
spindle tailstock- progressive ratio 1.25
spindle tailstock- spindle bore 95 mm
spindle tailstocl- spindle nose 55022/11 DIN
feeds 61
range of longitudinal feeds 0,11-2,16 U/min
range of plan feeds 0,05-1,08 mm/U
eight fold feeds 61
range of longitudinal feeds 0,88-17,28 mm/U
range of plan feeds 1:8 0,44-8,64 mm/U
4000 mm/min
62 metrical thread 1-120 mm/U
51 inch thread 30-1/4 Gg/1"
45 module thread 0,25-30
70 diametral-pitch-thread 60-1/2 DP
70 circular-pitch-thread 1/16-7/12 CP
12 mm
diameter tailstock quill 130 mm
120 mm
tailtstock quill cone 6 MK
turning speeds main drive 720/1445 U/min
capacity rapid travel 0,55 kW
turning speeds rapid travel 1000 U/min
L:5032/B:1120 mm
capacity main drive 15/20 kW
weight of the machine ca. 8 t
Accessories
steady rest 40-220 mm
steady rest 220-400 mm
cooling system
800 mm
technical documentation in German language
Additional information
100 % before loading
warranty:
none

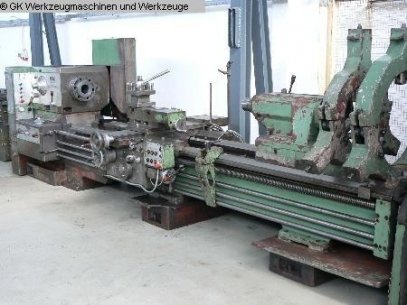

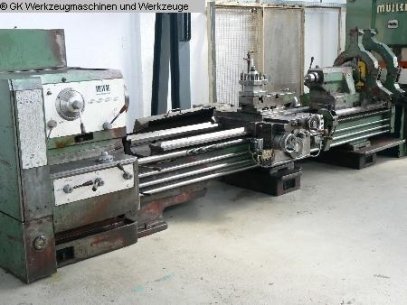

used center lathe make POREBA, type 400 x 3.000, year of production 1971
In metric standard version for the connecntion to 400 V, 50 cycles, 3 periods.
