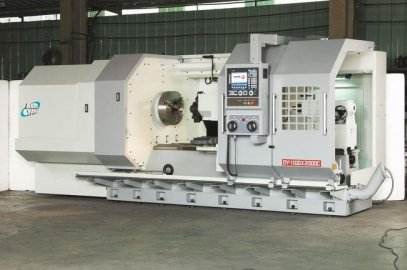

turning diameter 1100 mm
turning length 2000 mm
control Fagor 8055i
bed width 558 mm
turning dia. over face-slide 750 mm
max. workpiece weight between centres 4000 kg
workpiece weight in steadies max. 10000 kg
rapid power traverse in X-and Z direction 5/5 m/min
feeds - longitudinal 0,001-600 mm/U
main motor power 29 kW
diameter tailstock quill 160 mm
Quill travel 300 mm
tailstock quill taper MT 6
spindle speeds 320~660;110~320;20~110 1/min.
spindle bore 160 mm
main drive Fagor spindle motor FM7-A kW
total power requirement 30~45 kW
weight of the machine ca. t
dimensions of the machine ca. 4580/27310//2330 m
*ACCESSORIES*
hydr. turret 8 pos
coolant system
halogen lamp
live center
levellig elements
automatic lubrication system
CE-design
chip conveyor Spirale, vorne
Spindle oil cooler
center sleeve
auto lubrication system
heat exchanger
MPG hand wheel 2 Stk.
cnc control FAGOR 8055 TCI
3 jaw chuck 500 mm
