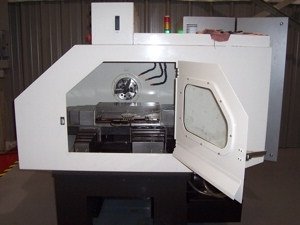

CyberCNC is proud to introduce another quality new machine model with exceptional quality and speed. Machine has gang style tooling system and is equipped with dual anchored 32mm ballscrews capable of 944 ipm rapids and 6,000 rpm spindle This machine Tool is being built for us to our specs and offers exceptional quality and accuracies in a small package. Please feel free to inquire for a quote specs or visit to see the machine in action. Currently 2 machine in stock here at CyberCNC in the USA.
Specifications:
Specification Description
Approximate Machine Age: 1997
Chuck Size: 10"
Swing Over Saddle 16.54"
Max. Cutting Diameter: 16.53"
Max Turning Length: 49.21"
Spindle Speeds: 65-3500 RPM
Gear Box YES 2 Speed
Spindle Motor: 40/30
Spindle Nose A2/8
Spindle Bore: 3.15"
Max Bar Size 2.65"
Turret Configuration - Upper: 12 Tools Bidirectional, VDI 40
Turret Configuration - Lower: 10 Tools Bidirectional, VDI 40
Z- Axis Head One Travel 52.16" Upper/ 50.00" Lower
X- Axis Head One Travel 11.81" Upper/ 7.68" Lower
Rapid Travels: X , Z X = 591 / Z = 787 IPM
Quill Type Quill MT# 5
Quill Diameter / Stroke (3.94") / Stroke: (5.91")
Dimensions: L X W X H 171" x 100" x 86.61"
Approximate Weight: 18,700 LBS
Equipped With:
Okuma OSP L 7000 CNC Control
Twin Turret Design
Lift-up Chip Conveyor
Simple tow along Tailstock w/ Programable Live Quill
10" Kitagawa 3-Jaw Chuck
Transformer
Solid Box-Way Construction
All Available Manuals
Thread Feed Hold
Cycle time Reduction
60 Meters of Mem.
Turret Pos. Compensation
Tool Life Management
NC Torque Limit
Animation
NC Work Counter
Mac Man
LAP 4
Nose-R 2B
User Task 2
EXP. Auto Champer
Cycle Time Calulation
Spindle Oreintation
Chuck Open Close Comformation
Auto Door
