Description:
Lathe, 2 Axis CNC, Universal, Fanuc OT Control, Swing Over Bed/Carriage 17.7”/13", Max Cut Dia 14", 2" Bar x 20.9" Z, 25 H.P, 4,000 RPM, 12 Position Turret, Tool Presetter, 8" Hyd Chk, Chip Conveyor
Specifications:

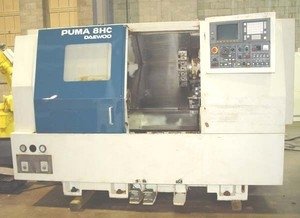

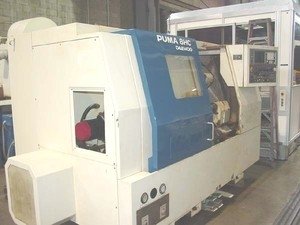

1995 Daewoo Puma 8HC
2-Axis CNC Lathe, Universal

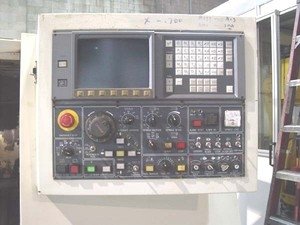

Fanuc 0T Control
Specifications:
Maximum Swing Over Bed/Carriage 19.7"/13"
Maximum Machining Diameter 14"
Maximum Center Distance 26"
Maximum Machining Length 20.9"
Spindle Motor 25 HP
Spindle Bore 2.44"
Spindle Speeds 40 - 4,000RPM
Maximum Bar Capacity 2"

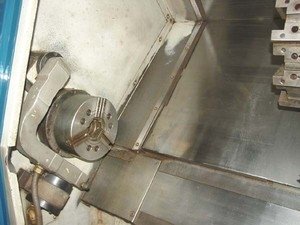

Chuck Size 8" Hydraulic
X Axis Travel 8.3"
Z Axis Travel 21.7"
Rapid Traverse Rates X, Z 800/1,000 IPM
Number of Turret Positions 12 Positions
Approx Dimensions 112" x 76" x 71"H
Approx Weight 10,500 Lbs
Specifications subject to confirmation at inspection.
Equipped With:
Fanuc 0T Control Inch/Metric Programming
Background Editing Tool Presetter
12 Position Bi-Directional ID/OD Programmable Tailstock8" Hyd Chuck Coolant System
Chip Conveyor All Available Tool Holders
All Available Manuals
Condition: Good - Very Good
Dimensions:
112" x 76" x 71"H
Weight:
10,500 Lbs
