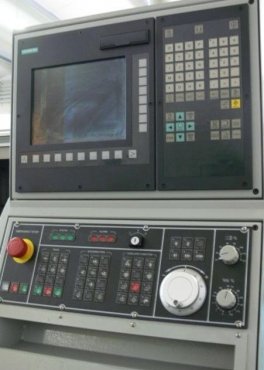

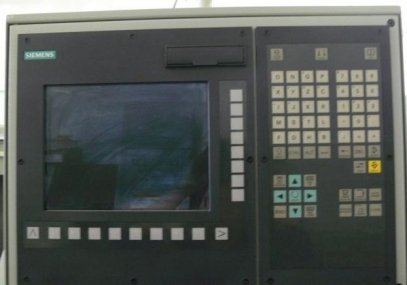

Siemens 802D SL control
10.4" colour LCD
chip conveyor
bar feeder interface
parts catcher

turning dia over bed: 480mm
turning dia over cross slide: 222mm
max. turning dia: 222mm

max. turning length: 320mm

chuck: 6", hydraulic

travel X axis: 150mm
travel Z- axis: 325mm

motor X: 1,6kW
motor Z: 1,6kW

rapid feed X: 24m/min
rapid feed Z: 24m/min

spindle speed: 6.000 rpm, belt transmission
spindle nose: ASA A2-5
bar capacity: 45mm
spindle motor: 9/12kW (1PH7107)
21kVA

quill dia: 58
quill taper: MT-4
quill travel: 88mm

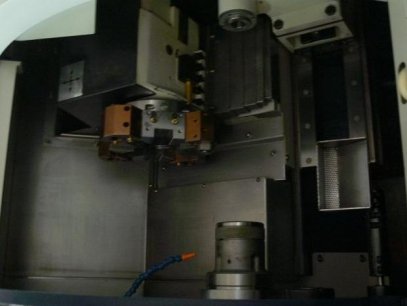

turret: hydraulic with 8 stations

coolant tank: capacity: 125l

dimensions: 1800 x 1450mm
weight: 3300kg

-
