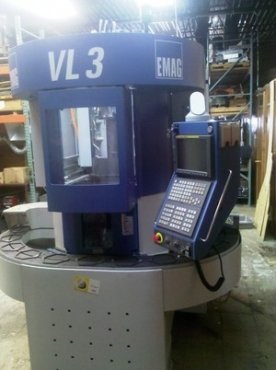

6" Rohm Hydraulic Chuck, 12 Pallet Auto Load / Unload Circular Conveyor, C-Axis Milling Capability, Renishaw Touch Probe, Mist Collector, Chip Conveyor, Never Cut Chips or Used Coolant!

Chuck Size 6"
Max Turning Diameter 6.3"
Max Swing Diameter 7.87"
Max Machining Length 4.4"
Main Motor 21 / 16 HP
Tools 12 (Live or Turning)
Spindle Speed 0 - 7500 RPM
Spindle Torque 147 ft. lbs.
Rapid Traverse Rates (X / Z) 2362 / 1181 IPM
Milling Motor 16 HP
Milling Speed 6000 RPM
X-Axis Travel (Ram) 15.75"
Z-Axis Travel (Rail) 7.87"
Machine Dimensions (L x W x H) 90.5" x 61" x 96.8"
Auto Loader Specifications:
Max Workpiece Diameter 5.1"
Max Workpiece Height 3.9"
Max Workpiece Weight (w/ chuck) 59.5 lbs.
Load Time 2 - 4 Seconds
Load & Unload Time 4.5 - 6.5 Seconds

FEATURES:
FANUC 18iTB CNC CONTROL
10.4" Color LCD
6" Rohm Hydraulic Chuck
12 Pallet Auto Load / Unload Circular Conveyor
C-Axis Milling Capability
Renishaw Touch Probe
Mist Collector
Chip Conveyor
Never Cut Chips or Used Coolant!

90 x 61 x 97

13227
